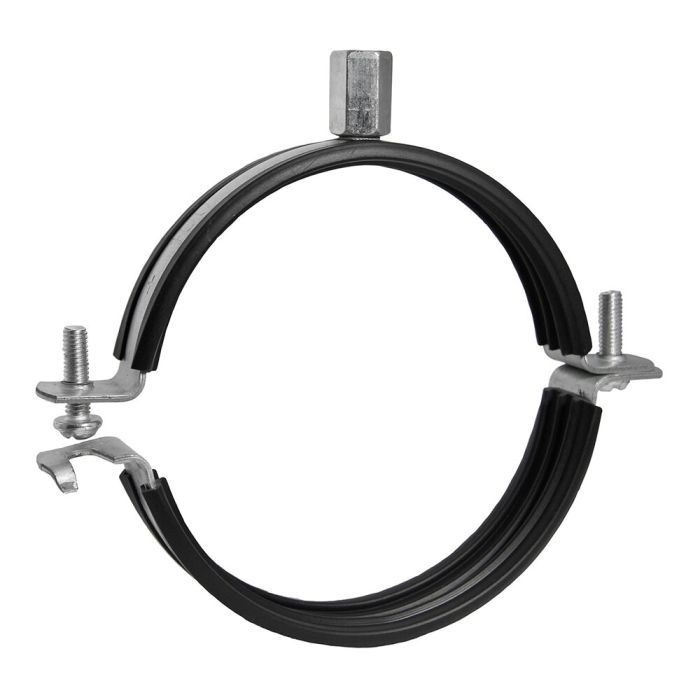

Ventilation clamp Plus Ø 160
Ventilation pipe clamp, M8/10, with insulation
Article number
547/0160
Ventilation clamp Plus Ø 160 is available to buy in increments of 25
with EPDM insulation insert
with click closure
with combination nut M8/M10
The MEZ-DUCT-CLAMP 160 is ideally suited for the assembly of ventilation and spiral-seam pipes with a nominmal size of 160 mm. Due to the click closure the MEZ-DUCT-CLAMP 160 is installed within a few seconds and the EPDM insulation insert leads to a noise level improvement of up to 18 dB (A). The maximum load of the MEZ-DUCT-CLAMP 160 is 600,0 N, the material thickness is 25,0 x 1,25 mm and the temperature range is between -50 and +110°C.
with click closure
with combination nut M8/M10
The MEZ-DUCT-CLAMP 160 is ideally suited for the assembly of ventilation and spiral-seam pipes with a nominmal size of 160 mm. Due to the click closure the MEZ-DUCT-CLAMP 160 is installed within a few seconds and the EPDM insulation insert leads to a noise level improvement of up to 18 dB (A). The maximum load of the MEZ-DUCT-CLAMP 160 is 600,0 N, the material thickness is 25,0 x 1,25 mm and the temperature range is between -50 and +110°C.
| Teilegruppe | 170202 |
|---|
