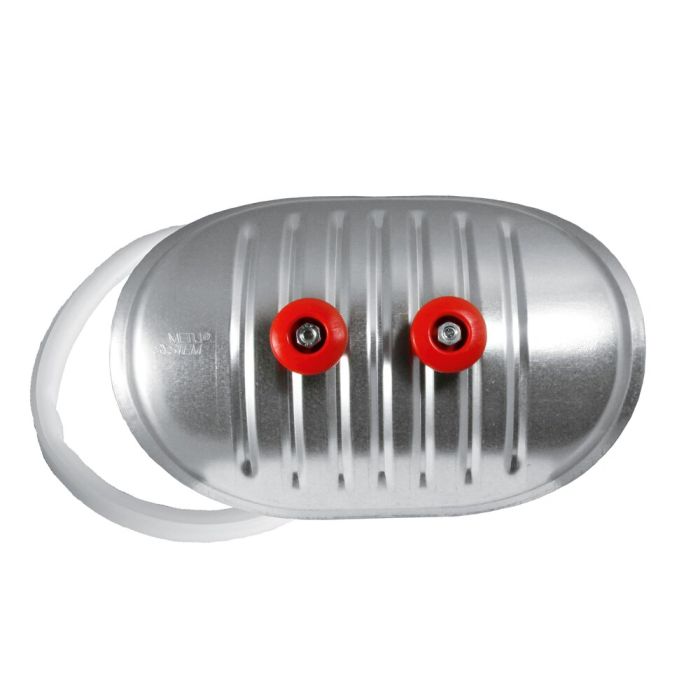

Access door RRD 18-9 - SI
suitable for food industry
Article number
630/090S
Access door RRD 18-9 - SI is available to buy in increments of 1
With silicone seal
Suitable for use in the food industry
Heat resistant up to +80°C
Revision RRD 18 SI is an inspection cover for circular air conduction systems and, thanks to its silicone seal, is ideally suited for use in the food industry. The Access Door RRD 18 SI is made of galvanised steel and has a silicone seal. The two rotary handles, which allow two-handed and safe handling, are made of POM-C and have a maximum clamping force of 1,000 to 1,500 Nm
The inspection opening RRD 18 SI is designed for a temperature range up to +80°C, the cut-out of the RRD 18 SI is 180 x 80 mm and the standard pipe diameter is NW 90. The installation height is approx. 36 mm and the maximum pressure of the RRD 18 is ± 2,500 Pa.
Suitable for use in the food industry
Heat resistant up to +80°C
Revision RRD 18 SI is an inspection cover for circular air conduction systems and, thanks to its silicone seal, is ideally suited for use in the food industry. The Access Door RRD 18 SI is made of galvanised steel and has a silicone seal. The two rotary handles, which allow two-handed and safe handling, are made of POM-C and have a maximum clamping force of 1,000 to 1,500 Nm
The inspection opening RRD 18 SI is designed for a temperature range up to +80°C, the cut-out of the RRD 18 SI is 180 x 80 mm and the standard pipe diameter is NW 90. The installation height is approx. 36 mm and the maximum pressure of the RRD 18 is ± 2,500 Pa.
| Part group | 160212 |
|---|---|
| Material | Galvanized steel |
