MEZ-NIPL - AISI 304

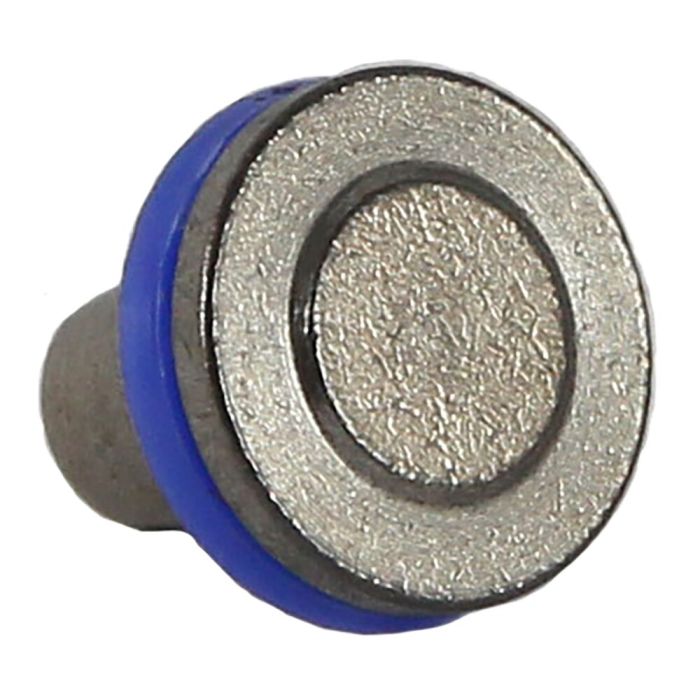

MEZ-NIPL 305E – Stainless Steel Baffle Plate Fastener for Tight and Vibration-Resistant Connections

The MEZ-NIPL 305E is a high-quality fastener designed for the reliable mounting of baffle plates in air ducts and air handling units. As a solid extruded part made of AISI 304 stainless steel with a pre-installed seal, it ensures a permanently stable and airtight connection between the air duct and baffles, dividers, or louvers.

In practice, oscillations, vibrations, and temperature stresses often lead to leaks or loosened connections. The MEZ-NIPL 305E specifically compensates for these factors and ensures a secure, long-lasting solution in professional ventilation construction.

Technical Highlights

• Connecting element for baffle plate and partition plate fastening
• Suitable for sheet thicknesses of 0.4 – 1.25 mm
• Pre-assembled seal, heat-resistant up to +100 °C
• Material: AISI 304 stainless steel
• Solid extruded part for high mechanical stability
• Product dimensions: A: 9 mm / B: 14 mm / C: 4 mm / D: 16.5 mm / S: 1.5 mm
• Packaging unit: 100 pieces

Key Features

• Effective compensation for oscillations and vibrations
• Permanently tight connection thanks to integrated seal
• Corrosion-resistant for long-lasting use
• Reduced installation effort due to pre-assembled component
• High process reliability in manufacturing and assembly

Additional Features

• Stainless steel design minimizes corrosion risks and reduces long-term replacement and maintenance costs
• Reliable sealing and a stable connection reduce rework and increase operational safety

Installation

• Ready for immediate use without additional sealants
• Quick and easy installation
• Precise positioning with optional centering drill bit
• Reproducible installation quality in series production

Why is this baffle plate fastener right for you

The MEZ-NIPL 305E is the optimal choice for applications where, in addition to secure baffle plate fastening, sealing, vibration damping, and corrosion resistance are required. It improves airflow quality, reduces maintenance requirements, and ensures permanently stable connections throughout the system.

Application scenarios

• Baffle plate fastening in air ducts
• Fastening of partition plates in HVAC systems
• Use in corrosion-prone or humid environments
• Integration into series production of air duct systems
• Maintenance and retrofitting of existing systems

All information is provided without warranty. Technical data, illustrations, and prices are subject to change and are non-binding. Errors excepted.
