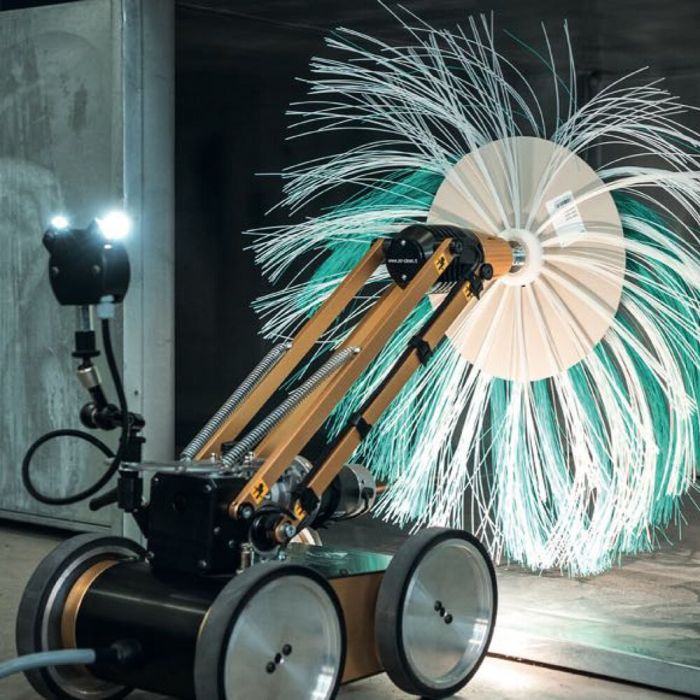

TOROBOT X cleaning robot

The most powerful robot on the market! Powerful. Precise. Documented.

The TOROBOT X is a professional cleaning machine designed for particularly large and heavily soiled air ducts. It combines maximum cleaning performance with precise control and an integrated documentation system. You can clean large industrial ducts efficiently whilst retaining full control over the entire cleaning process at all times. At the same time, all work can be fully documented and stored in a traceable manner.

Thanks to its high-performance drive technology and powerful brush motor, the TOROBOT X reliably removes even stubborn dirt. The intelligent camera technology enables continuous visual monitoring during cleaning. Combining high performance, electric height adjustment and professional video recording, the TOROBOT X is ideally suited to demanding cleaning tasks in industry, commerce and building services.

Technical highlights

• Suitable for industrial ducts from 400 to 1200 mm
• 48 V DC brush motor with 4.1 Nm torque
• Brush speed 450 rpm
• Electric height adjustment of the brush arm via 24 V DC
• Remote control with integrated 7-inch HD colour display
• Two HD colour cameras and an additional arm-mounted camera
• Video recorder with SD card function
• Noise level of just 50 dB(A)
• Robot dimensions 450 x 275 x 290 mm
• Maximum height with arm extended 650 mm
• Robot weight 24 kg
• Robot cable length: 21 m
• Power supply: 220 V / 16 A
• Housing made of aluminium and plastic
• Four driven wheels with internal drive

Key features

• Designed for large and heavily soiled industrial sewers
• Simultaneous cleaning and documentation
• Full visual inspection via three cameras
• Electrically height-adjustable brush arm
• High cleaning performance combined with simple operation

Additional features

• Comprehensive before-and-after documentation
• Robust construction for professional continuous use
• Compact design despite high performance
• Safe transport thanks to a sturdy aluminium case

Installation

• Inserting the robot via suitable inspection openings
• Connecting the control unit and power supply
• Selecting the desired camera angle
• Adjusting the brush height to suit the duct dimensions
• Controlling the robot via the remote control with HD screen
• Saving inspection and cleaning videos to an SD card

Why is this TOROBOT X cleaning robot right for you?

The TOROBOT X is the ideal solution for businesses wishing to clean large ventilation and industrial ducts thoroughly, safely and with full documentation. The combination of a powerful brush motor, electric height adjustment, three cameras and convenient remote control enables professional cleaning results even in heavily soiled duct systems. At the same time, the integrated documentation function ensures maximum transparency and traceability during maintenance and cleaning work.

Application scenarios

• Cleaning of large industrial ducts
• Ventilation and air conditioning systems in industrial buildings
• Exhaust air systems in production facilities
• Commercial kitchens and commercial exhaust air systems
• Maintenance and servicing of air distribution systems
• Professional duct cleaning in industry and commerce
• Documented cleaning and inspection work

All information is provided without guarantee. Technical specifications, illustrations and prices are subject to change and are not binding. Errors excepted.
