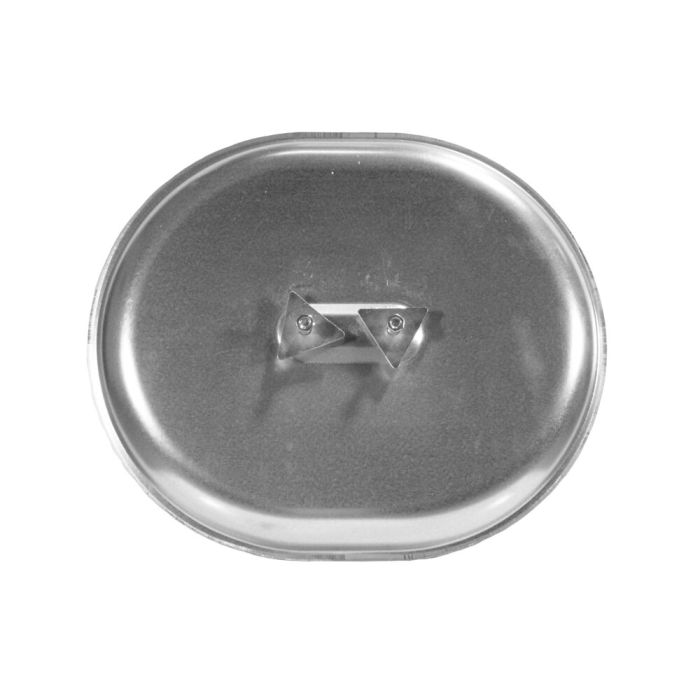

Access door RD 32 - HT
Access door RD 32 - HT | 300x200 mm, galvanized steel | heat-resistant model
Article number
602H
Access door RD 32 - HT is available to buy in increments of 1
Suitable for high temperatures (heat resistant version)
With glass fibre seal
Galvanised steel up to +200°C
Access door RD 32 HT is an access door for rectangular air duct systems and is also designed for particularly high temperature requirements. The Access Door RD 32 HT is made of galvanised steel and has a glass fibre seal. The two metal star-shaped handles allow safe handling with both hands and have a maximum clamping force of 1,000 to 1,500 Nm.
The inspection opening RD 32 HT is designed for particularly high temperature ranges of +200°C and the cut-out of the RD 32 is 300 x 200 mm, the installation height is approx. 50 mm and the maximum pressure of the RD 32 is 2,500 Pa.
With glass fibre seal
Galvanised steel up to +200°C
Access door RD 32 HT is an access door for rectangular air duct systems and is also designed for particularly high temperature requirements. The Access Door RD 32 HT is made of galvanised steel and has a glass fibre seal. The two metal star-shaped handles allow safe handling with both hands and have a maximum clamping force of 1,000 to 1,500 Nm.
The inspection opening RD 32 HT is designed for particularly high temperature ranges of +200°C and the cut-out of the RD 32 is 300 x 200 mm, the installation height is approx. 50 mm and the maximum pressure of the RD 32 is 2,500 Pa.
| Teilegruppe | 160104 |
|---|---|
| Material | Stahl verzinkt |
