MEZ-LATZ

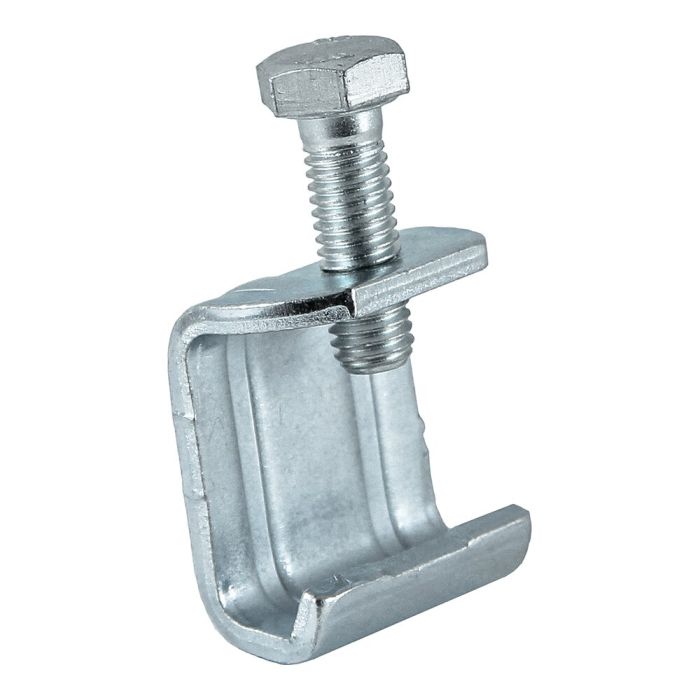

MEZ-LATZ - M8 x 25 - galv.: Maximum connection reliability for sturdy air duct joints

The MEZ-LATZ - M8 x 25 - galv. offers a robust, reliable solution. Designed as a high-quality air duct clamp, it ensures a permanently secure air duct joint for Systems 20, 30 & 40. The galv. finish, 3.0 mm material thickness and sturdy ribbing over the bend ensure maximum rigidity. This is ideal for high-pressure systems, demanding installation conditions and daily industrial use.

Thanks to the well-designed hook, the air duct clamp can be easily hooked onto the bead of the flange profile, tilted over the opposite profile and then securely tightened. The result is a precise fit to the profile, a stable connection and minimised installation effort.

In practice, fitters and manufacturers often face the same problem: air ducts must be connected to one another quickly, reliably and with a permanent seal. This presents a particular challenge with larger edge lengths and high pressure levels. Standard duct clamps often offer insufficient stability or cannot be fitted cleanly.

Technical highlights

• Material: Galvanized steel
• Screw: M8 x 25
• Product dimensions: A = 35 mm, B = 20 mm, C = 17 mm, D = 23 mm
• Systems: 20, 30 & 40
• Max. load: 1.8 kN
• Packaging unit: 100 pieces
• For connecting rectangular air ducts
• Increased stability thanks to double ribbing
• Also suitable for large duct cross-sections and high pressure conditions

Key features

• 3.0 mm material thickness for high stability
• Galvanized steel, which is corrosion-resistant and durable
• Universally applicable air duct clamp
• Secure clamping of the flange profiles without deformation
• Quick installation suitable for workshops and construction sites



Additional features

• High “Made in Germany” quality ensures long-term supply reliability
• Galvanized steel and optimal material thickness reduce complaints and rework
• Less variant management in procurement thanks to universal applicability
• Durability thanks to robust galvanisation
• Secure hold even after years – facilitates inspections and maintenance
• Minimised risk of leaks or profile cuts

Installation

• Quick, intuitive installation with no risk of profile deformation
• Firm clamping pressure (up to 1.8 kN) for airtight ducts – even under high pressure
• Standard M8 x 25 screws simplify site logistics



Why is this air duct clamp right for you?

The MEZ-LATZ 506 air duct clamp is the ideal choice for businesses that prioritise reliable connections, simple installation and long-lasting quality in air duct construction. A small component with a major impact on stability, airtightness and project success.


Application scenarios

• Connection of air ducts with system profiles 20/30/40
• Installation of air ducts with edge lengths from 500 mm
• Use in high-pressure ventilation systems
• Manufacturing processes in air duct production
• Service and maintenance operations to secure connections
