MEZ-SYPHON-FLANGE 40

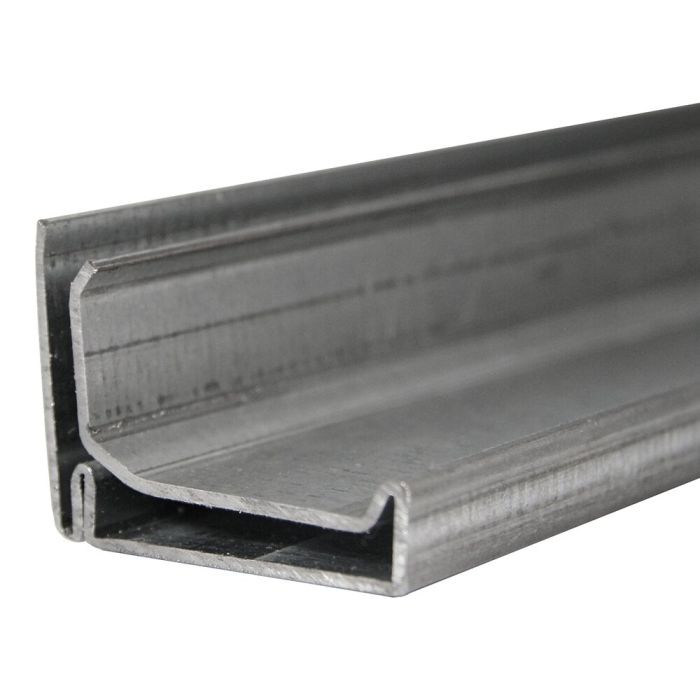

MEZ-SYPHON-FLANGE 40 - galv. – Robust, all-purpose air duct profile for maximum stability and airtightness

The MEZ-SYPHON-FLANGE 40 - galv. is a high-performance all-round air duct profile (FLANGE) for the construction of large-scale air distribution systems with high airtightness requirements. The integrated siphon provides structural support for airtightness – a clear advantage over conventional profiles without integrated Sealing.

In practice, large duct cross-sections and high mechanical loads place particular demands on stability and airtightness. This air duct profile specifically addresses these challenges: the rigid shape and a support section at a 45-degree angle stabilise the joint. A lip provides additional sealing. These components prevent the joint from bending. As a result, the parts remain firmly and tightly joined even under difficult conditions.

Technical highlights

• System 40 – ideal for large air duct cross-sections
• Galvanized steel for reliable corrosion protection
• Integrated siphon geometry to reduce air leaks
• 45° support flange for maximum stability
• Beveled insertion chamfer for easier duct insertion
• Inner flange with sealing lip function for additional Sealing
• High dimensional and torsional rigidity
• Suitable for demanding air duct systems

Key features

• High airtightness thanks to integrated siphon
• Maximum stability for large-format air ducts
• Reduced rework and sealing effort
• Reliable and reproducible manufacturing processes
• Reliable solution for demanding applications

Additional features at a glance

• Cost-effective thanks to durable and robust design
• Sturdy flange frame facilitates the fabrication of large ducts
• Reduced maintenance requirements due to tight connections
• Minimised leakage losses increase energy efficiency
• Consistently high stability and tightness

Installation

• Easy insertion of the duct wall thanks to the chamfered bevel
• High stability during joining thanks to 45° support flanges
• Secure fit thanks to the sealing lip effect of the inner flange
• Suitable for riveting, screwing, welding or crimping
• Ideal for working with large air ducts

Why is this MEZ-SYPHON-FLANGE 40 - galv. right for you

If you are looking for a particularly stable and airtight FLANGE air duct profile for large air duct systems, the MEZ-SYPHON-FLANGE 40 - galv. is the ideal choice. It offers maximum stability, reduces installation effort and enables cost-effective production – even for demanding projects.

Application scenarios

• Manufacture of large-scale air ducts
• Industrial and commercial ventilation
• Building services systems with high mechanical requirements
• HVAC systems for high air flow rates
• Plant engineering with complex air distribution systems
• Series production in professional ductwork construction

All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are non-binding. Errors excepted.
