MEZ-SYPHON-FLANGE 40/L

MEZ-SYPHON-FLANGE 40/L - galv. (148LSB) – FLANGE Air duct profile with Butyl-Mastic for maximum airtightness in large-scale projects

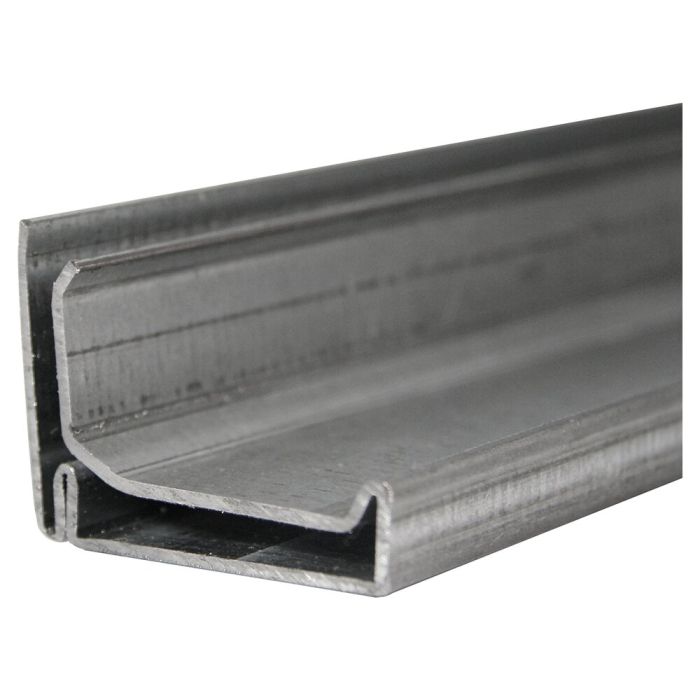

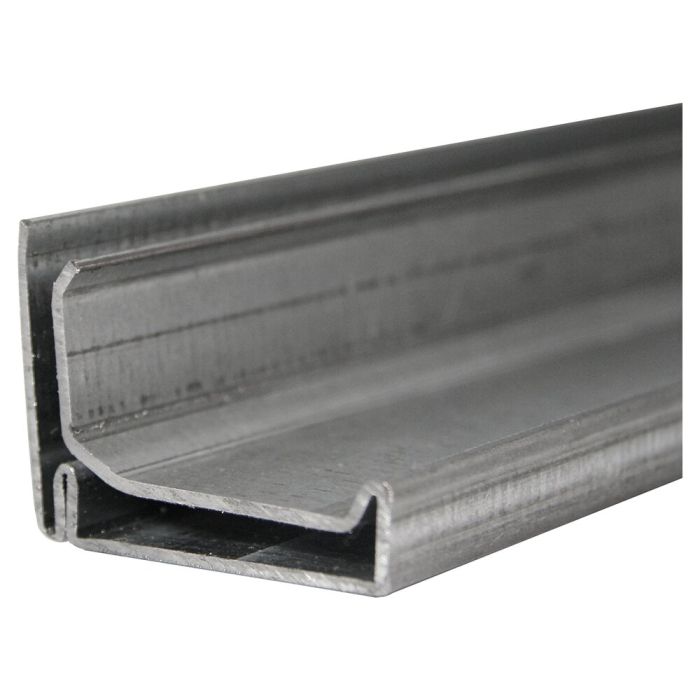

The MEZ-SYPHON-FLANGE 40/L - galv. (148LSB) air duct profile is suitable for the construction of large air distribution systems. This all-round profile meets the highest standards of airtightness and guarantees reliable production processes. The integrated siphon geometry, combined with factory-applied Butyl-Mastic injection, ensures a reliable and uniform sealing process directly within the profile.

Large duct cross-sections and complex systems often cause problems. Leaks, manual sealing work and unstable joints frequently lead to rework. This costs time and increases costs. This air duct profile offers a well-thought-out solution to these challenges. The integrated seal and the profile’s robust construction guarantee consistent quality. This allows you to manufacture air ducts efficiently in accordance with tightness classes C and D as per the DIN EN 1507 standard.

Technical highlights

• System 40/L – optimised for large-format air ducts
• Galvanized steel (148LSB) for reliable corrosion protection
• Factory-applied Butyl-Mastic injection for uniform Sealing
• Integrated siphon geometry to minimise air leaks
• Folded insertion bevel for easy duct installation
• Inner flange with sealing lip function for additional sealing
• Sturdy support flange for high dimensional and torsional rigidity
• Suitable for tightness classes C & D in accordance with DIN EN 1507

Key features

• High airtightness without additional sealing measures
• Reduced installation effort thanks to integrated seal
• Reliable use with large-format duct cross-sections
• Less rework and reduced risk of errors
• Efficient and cost-effective production processes

Additional features

• Reduced need for additional materials and simplified stock management
• Faster turnaround times thanks to integrated sealing solution
• Permanently tight joints reduce maintenance requirements
• Minimised leakage losses increase energy efficiency
• Consistent tightness without variation

Installation

• Quick insertion of the duct wall thanks to the chamfered bevel
• No manual application of sealants required
• Secure fit due to the sealing lip effect of the inner flange
• Torsion-resistant construction thanks to a sturdy support flange
• Suitable for riveting, screwing, welding or press-fitting

Why is this MEZ-SYPHON-FLANGE 40/L - galv. right for you

The MEZ-SYPHON-FLANGE 40/L - galv. (148LSB) is ideal for large air ducts. This profile seals the system securely and ensures high stability. At the same time, it saves costs and operates economically. If you are looking for a robust profile for your systems, this product offers the right solution. It reduces installation times, minimises sources of error and ensures permanently secure air duct connections – particularly for demanding projects.

Application scenarios

• Manufacture of large-dimensioned air ducts
• Industrial and commercial ventilation
• Building services systems with the highest airtightness requirements
• HVAC systems with high air volumes
• Plant engineering with complex air distribution systems
• Series production in professional air duct construction
