MEZ-LATZ

Tight and stable air duct connections for Systems 30 & 40

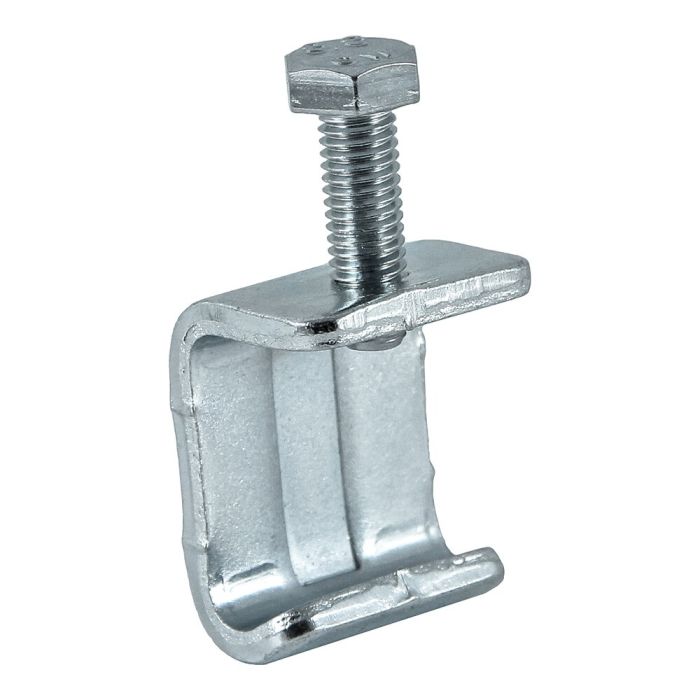

The MEZ-LATZ M8 x 25 - galv. is a robust air duct clamp made of galvanized steel with a material thickness of 4.0 mm and double ribbing. This ensures high rigidity, secure clamping force and permanently airtight connections – specifically for Systems 30 & 40 and high-pressure systems. The pre-fitted M8 x 25 hexagon head screw speeds up installation without the need for pre-clamping or drilling. The maximum clamping force is 3.6 kN.

Compared to the 2.5–3.0 mm variants commonly found on the market, the 4 mm version offers additional safety margins. This is ideal for large duct cross-sections or demanding tightness classes.

When installing rectangular air ducts, three things matter: leak-tightness, stability and time. Particularly with large cross-sections and higher pressures, rework and leaks cost time and money. This is often exacerbated by duct clamps that are too weak or additional work steps such as pre-drilling.

Technical highlights

• Material: Galvanized steel
• Screw: M8 x 25
• Product dimensions: A = 35 mm, B = 25 mm, C = 18 mm, D = 26 mm
• Systems: 30 & 40
• Max. load: 3.6 kN
• Packaging unit: 100 pieces
• For connecting rectangular air ducts
• Increased stability thanks to double ribbing
• Also suitable for large duct cross-sections and high pressure conditions
• Suitable for high-pressure systems

Key features

• 4.0 mm galvanized steel and double ribbing for extra stability
• 3.6 kN contact pressure ensures a secure hold under load
• Pre-assembled M8 x 25 air duct clamp for quicker and neater installation
• Installation guide: ≤ 400 mm free length, pack of 100
• Consistently high manufacturing quality, as produced in Germany

Additional features

• Fewer complaints thanks to greater rigidity
• Predictable quality and efficient installation, resulting in lower overall process costs per metre of air duct.
• Durably stable air duct clamp for systems subject to vibrations and pressure fluctuations
• 4 mm galvanized steel and double ribbing minimise settlement.

Installation

• Quick, clean installation thanks to a pre-fitted screw.
• High clamping force reduces the need for retightening.
• Clear installation guide (≤ 400 mm) ensures consistent results.

Why is this air duct clamp right for you?

MEZ-LATZ is the duct clamp for quick, airtight and standard-compliant connections in professional projects. The strengths of this air duct clamp really come into their own where safety and time are of the essence.

Application scenarios

• Connection of rectangular air ducts in System 30 & System 40, including high-pressure systems
• Large duct cross-sections or long runs with high airtightness requirements
• Retrofit & maintenance: quick replacement without drilling or pre-clamping
