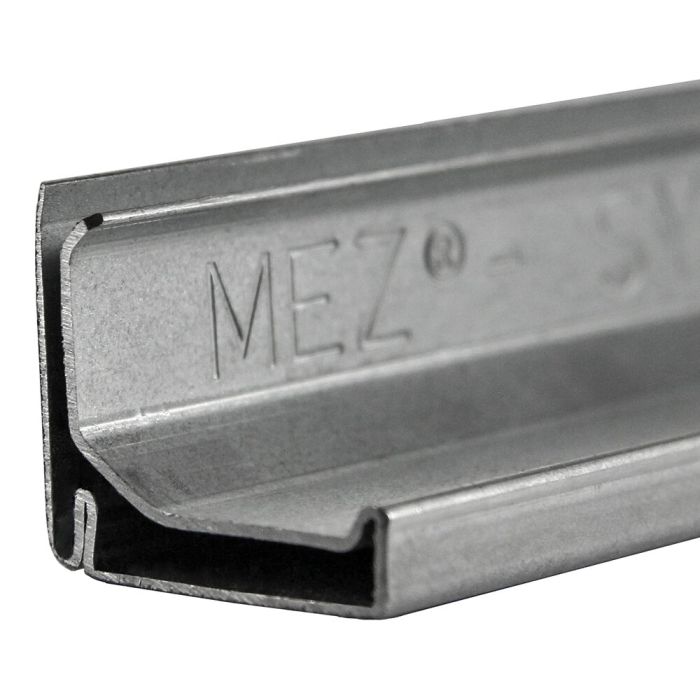

MEZ-SYPHON-FLANGE 30

MEZ-SYPHON-FLANGE 30 - galv. – Maximum airtightness for high-performance air duct profiles

The MEZ-SYPHON-FLANGE 30 - galv. ensures maximum airtightness and stability in professional air duct production. Thanks to an integrated siphon and factory-injected MEZ-Bluemastic-GEL, this FLANGE air duct profile ensures permanent, reliable sealing—even under the most demanding conditions. In practice, it is often leaky flange connections and time-consuming rework that delay projects and increase costs.

With this system, air ducts can be manufactured efficiently and in compliance with standards. The intelligent combination of sealing gel, siphon geometry, and sealing lip function ensures uniform sealing and enables compliance with tightness classes C & D according to DIN EN 1507.

Technical Highlights

• Galv. steel profile (VZ) for long-lasting corrosion protection
• Integrated siphon to minimize air leaks
• Injected sealing compound MEZ-Bluemastic-GEL
• Flange sealing surface for secure duct connections
• Profile nose for accommodating connecting elements
• Sturdy support leg for high dimensional stability
• Fastening area for welding, riveting, screwing, or pressing
• Beveled insertion chamfer for easy duct installation

Key Features

• Maximum tightness without additional sealing
• Reduction of installation errors and rework
• Standard-compliant production with high process reliability
• Optimized stability even with larger duct cross-sections
• More efficient manufacturing processes

Additional Features at a Glance

• Less material usage and clear cost calculation thanks to integrated seal
• Reduced maintenance and inspection costs due to tight connections
• Minimized energy losses thanks to reliable sealing

Installation

• Quick insertion of the duct wall via the chamfered bevel
• Secure hold due to the sealing lip effect of the inner flange
• Flexible fastening options for various manufacturing processes
• No additional sealing required

Why is this MEZ-SYPHON-FLANGE 30 - galv. right for you

For manufacturers and installers who produce large air duct profiles with the highest level of airtightness, this air duct profile is the ideal solution. It combines stability, ease of installation, and tested airtightness—while simultaneously reducing time and cost expenditures throughout the entire process chain.

Application scenarios

• Production of large-format air ducts
• Industrial and commercial facilities with high airflow rates
• Ventilation systems with tightness class C & D requirements
• Clean room and hygiene areas
• Central ventilation systems in large building complexes
• Series production of ventilation ducts

All information is provided without warranty. Technical data, illustrations, and prices are subject to change and are non-binding. Errors excepted.
