MEZ-CORNER 30 - 104

Sturdy and adjustable corner connector for System 30 – MEZ-CORNER 30 – Slotted hole, M10 – galv.

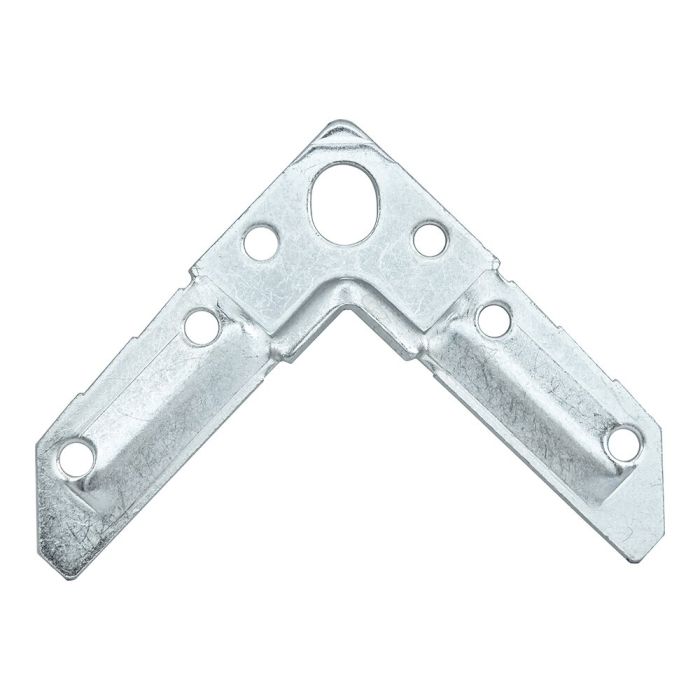

The MEZ-CORNER 30 – Slotted hole, M10 – galv. is a robustly designed air duct profile connector for the SYPHON-FLANGE System 30 and is particularly suitable for larger and more heavily loaded air duct frames. The corner with a slotted hole and M10 design enables a stable connection whilst offering sufficient flexibility for precise alignment during installation.

In practice, larger duct dimensions often involve higher mechanical loads and dimensional tolerances. Conventional connections quickly reach their limits here or require time-consuming reworking. This slotted corner allows for precise adjustment whilst ensuring a reliable, repeatable connection in the production process.

Technical Highlights

• Designed for the SYPHON-FLANGE System 30 for larger duct dimensions
• Slotted hole (11 x 15 mm) suitable for M10 connections allows flexible adjustment
• Side length of 104 mm for stable and robust corner constructions
• Material thickness of 3.0 mm for high dimensional stability in continuous use
• Through-hole mounting for clean integration into the duct wall
• Offset of 30 mm for a precise fit within the system

Key features

• Compensation for dimensional tolerances in large-format ducts
• High stability thanks to larger design and M10 configuration
• Reduced installation effort through flexible screw connection
• Reproducible results in series production
• Corrosion-protected by galv. finish

Additional features

• System-compatible solution for larger air duct profiles
• Fewer readjustments with stable corner joints
• Supports reliable and airtight airflow

Installation

• Simple insertion through the duct wall
• Flexible alignment possible via the slotted hole
• Secure bolting with M10 components
• Suitable for workshop and on-site installation

Why is this corner suitable for you

The MEZ-CORNER 30 – Slotted, M10 – galv. is the ideal solution for stable yet adjustable corner joints in the System 30. Particularly with larger air ducts, you benefit from high load-bearing capacity, installation flexibility and consistent joint quality.

Application scenarios

• Production of large-format air ducts
• Frame construction in the SYPHON-FLANGE System 30
• Ventilation and air conditioning system construction
• Industrial and plant engineering
• Maintenance and retrofitting of existing systems

All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are non-binding. Errors excepted.
