MEZ-CORNER 30 - 104

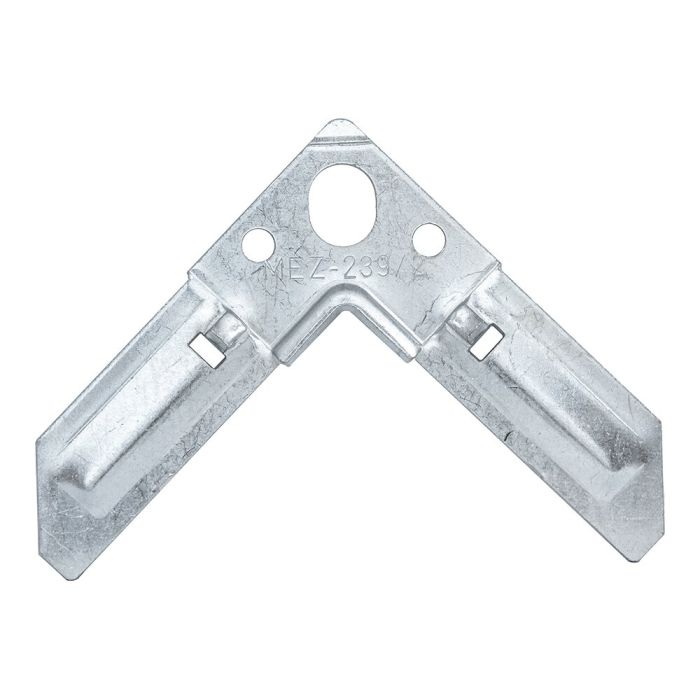

Flexible corner joint with installation aid – MEZ-CORNER 30 – Slotted hole, M10, hook – galv.

The MEZ-CORNER 30 – Slotted hole, M10, hook – galv. is a functional air duct profile connector for the SYPHON-FLANGE System 30 and has been developed for stable yet easy-to-install corner joints. The corner combines a slotted hole for adjustment with a drive-in notch (hook), which makes handling during installation noticeably easier.

Particularly with larger air ducts, it is not only stability that is crucial, but also the quick and clean alignment of the components. Dimensional tolerances and time-consuming fixing often lead to delays. This design facilitates precise positioning immediately upon insertion and ensures a reliable, airtight connection through Sealing at the end face and inner edge.

Technical highlights

• Slotted hole (11 x 15 mm) for flexible alignment with M10 screw connections
• Notch (hook) aids fixing during installation
• Side length of 104 mm for stable corner joints in large ducts
• Material thickness of 3.0 mm for a robust and dimensionally stable design
• Through-hole installation for clean integration into the duct wall
• Clearance dimension of 30 mm suitable for System 30 applications

Key features

• Faster installation thanks to integrated fixing aid
• Compensation for manufacturing and installation tolerances
• High stability for large-format air ducts
• Reduced rework
• Durable thanks to galv. surface

Additional features

• Functional system solution for efficient processes in System 30
• Fewer readjustments thanks to a stable fit and improved alignment
• Supports reliable and airtight airflow

Installation

• Simple push-through installation through the duct wall
• Pre-fixing with hooks facilitates handling
• Flexible alignment thanks to the slotted hole
• Secure screw connection with M10 components

Why is this corner bracket suitable for you

The MEZ-CORNER 30 – slotted hole, M10, hook – galv. is ideal for anyone who requires not only stability but also efficiency in assembly when working with large air duct frames. It simplifies workflows, reduces sources of error and ensures reproducible connection results in the System 30.

Application scenarios

• Production of large-format air ducts
• Frame construction in the SYPHON-FLANGE System 30
• Ventilation and air conditioning system construction
• Industrial and plant engineering
• Maintenance and modification of existing air duct systems

All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are non-binding. Errors excepted.
