MEZ-CORNER 30 - 104
Flexible corner connector for System 30 with short clearance – MEZ-CORNER 30 – slotted hole, M10 – galv.

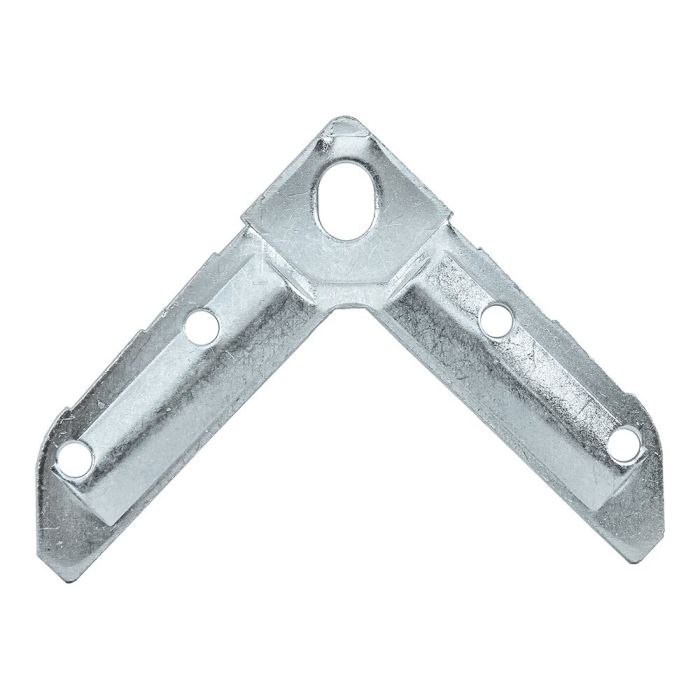

The MEZ-CORNER 30 – Slotted hole, M10 – galv. with reduced clearance is an adaptable air duct profile connector for the SYPHON-FLANGE System 30. This corner has been specifically developed for installation situations where a shorter clearance is required, without compromising on stability or installation flexibility.
In practice, precise adaptability is particularly important for special duct geometries or confined connection areas. Standard solutions with a larger offset often do not fit optimally here. Thanks to the reduced offset of 10 mm and the slotted design, the corner can be neatly integrated and precisely aligned – whilst maintaining a stable connection.
Technical highlights
- Slotted hole (11 x 15 mm) for flexible adjustment with M10 screw connection
- Reduced projection of 10 mm for special installation situations
- Side length of 104 mm for stable corner connections
- Material thickness of 3.0 mm for a robust design
- Through-hole mounting enables clean integration into the duct wall
Key features
- Ideal for limited space or special connection dimensions
- Compensation for tolerances via the slotted hole
- Stable connection even with large-format ducts
- Less rework thanks to improved fit accuracy
- Galv. surface for long-lasting use
Additional features
- Complements the System 30 range for special requirements
- Less adjustment required for custom solutions
- Supports reliable airflow
Installation
- Simple push-through installation through the duct wall
- Flexible alignment via the slotted hole
- Quick screw connection with M10
- Clean fit even in confined spaces
Why is this corner bracket suitable for you
The MEZ-CORNER 30 – slotted hole, M10 – galv. with short offset is the ideal solution for challenging installation scenarios in the System 30. It combines stability with flexibility and enables precise results even where standard dimensions are insufficient.
Application scenarios
- Air duct production with special dimensional requirements
- Frame construction in the SYPHON-FLANGE System 30
- Ventilation and air conditioning system construction
- Industrial and plant engineering
- Adaptation and retrofitting of existing air ducts
All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are non-binding. Errors excepted.
| Part group | 110102 |
|---|---|
| Material | Galvanized steel |
| Screw hole | 11 x 15 mm |
| Clearance | 10 mm |
| Versioin | With a short pull-out dimension and a long hole |
| Pallet | 7.500 St. |
| Packaging unit | 250 St. |
