MEZ-CORNER 30 - 104 - AISI 304

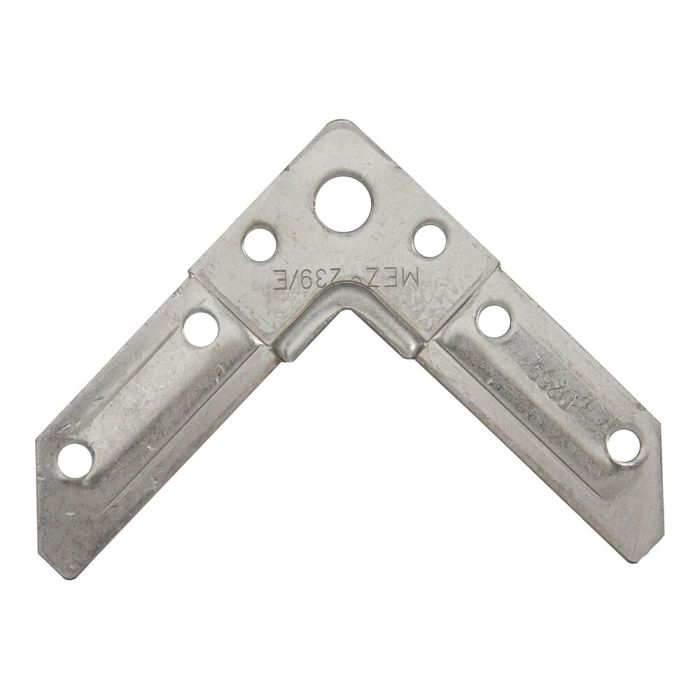

Corrosion-resistant corner joint for System 30 – MEZ-CORNER 30 – Round hole, M10 – AISI 304

The MEZ-CORNER 30 – Round hole, M10 – AISI 304 is a high-quality stainless steel corner joint for the SYPHON-FLANGE System 30 and has been specially developed for use in demanding environments. As a durable air duct profile connector, it ensures stable and permanently airtight corner joints in the production of air duct systems – particularly where there are increased requirements for corrosion resistance.

In practice, air duct systems are frequently exposed to moisture, aggressive media or hygienically sensitive areas. Conventional materials quickly reach their limits in such conditions. Thanks to its AISI 304 construction, this corner bracket offers a reliable solution for durable connections without compromising on stability or fit.

Technical Highlights

• Stainless steel construction (AISI 304) for corrosion-resistant applications
• Side length of 104 mm for stable corner joints in System 30
• Round hole (Ø 11 mm) suitable for M10 screw connections
• Material thickness of 3.0 mm for dimensionally stable and robust constructions
• Offset dimension of 30 mm for system-compatible integration
• Through-hole mounting with sealing at the end face and inner flange

Key features

• High resistance to moisture and corrosion
• Stable connection even with large-format air ducts
• Clean and tight corner formation
• Reduced maintenance and replacement costs
• Suitable for long-term system designs

Additional features

• Stainless steel variant for special requirements and standard-compliant design
• Fewer replacements thanks to durable material
• Supports consistently reliable airflow

Installation

• Simple push-through installation through the duct wall
• Quick screw connection with M10 components
• Stable fit without time-consuming reworking
• Suitable for workshop and on-site installation

Why is this corner bracket right for you

The MEZ-CORNER 30 – Round hole, M10 – AISI 304 is the right choice for permanently stable and corrosion-resistant corner joints in air duct construction. It offers a reliable solution for demanding applications and integrates seamlessly into System 30.

Application scenarios

• Air ducts in environments subject to moisture or corrosion
• Hygienically sensitive areas (e.g. food and pharmaceutical industries)
• Industrial and plant engineering
• Production of air duct systems in System 30
• Maintenance and retrofitting of durable air duct systems

All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are non-binding. Errors excepted
