MEZ-CORNER 30 – Slotted hole, M8, press-fit – galv.

Compact and sturdy corner connector for System 30 – MEZ-CORNER 30 – slotted hole, M8, press-fit – galv.

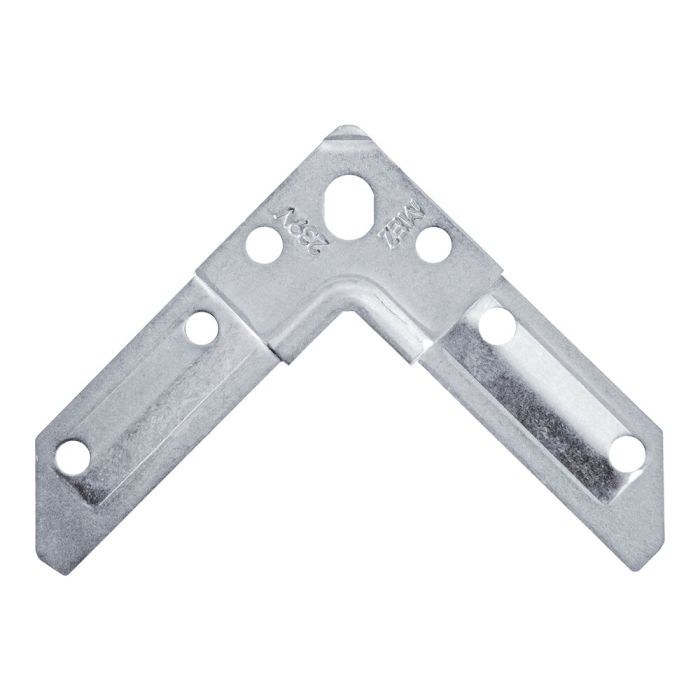

The MEZ-CORNER 30 – Slotted hole, M8, press-fit – galv. is a compact and robust air duct profile connector for the SYPHON-FLANGE System 30. The corner combines a press-fit design for high dimensional stability with a slotted hole, which allows for flexible alignment during installation – ideal for precise connections where installation dimensions are limited.

Particularly in special installation situations or confined spaces, standard solutions with larger clearance dimensions or heavier screw connections quickly reach their limits. This version with M8 and reduced clearance dimensions offers a well-designed alternative that enables clean corner connections whilst ensuring efficient installation.

Technical highlights

• Press-fit design for stable and consistent joint quality
• Slotted hole (9 x 12 mm) for flexible adjustment with M8 screw connection
• Leg length of 95 mm for stable corner areas
• Material thickness of 3.0 mm for robust constructions
• Clearance dimension 10 mm for compact installation situations
• Through-hole mounting for clean integration into the duct wall

Key features

• Compact design for confined spaces
• Stability despite reduced screw connection size
• Flexible alignment during installation
• Less rework thanks to a precise fit
• Galv. surface for long-lasting use

Additional features

• Complements the System 30 range for special requirements
• Less adjustment required in tight installation situations
• Supports safe and reliable airflow

Installation

• Simple push-through installation through the duct wall
• Flexible positioning thanks to the slotted hole
• Quick assembly with M8
• Stable fit even in confined spaces

Why is this corner bracket right for you

The MEZ-CORNER 30 – slotted, M8, crimped – galv. is the right choice for anyone requiring compact, stable and yet flexibly adjustable corner joints within the System 30. It ensures clean results, reduces installation effort and integrates seamlessly into existing production processes.

Application scenarios

• Air duct production with limited installation space
• Frame construction in the SYPHON-FLANGE System 30
• Ventilation and air conditioning system construction
• Industrial and plant engineering
• Adaptation and retrofitting of existing air ducts
