MEZ-CORNER 30 - Slotted hole, M10, pressed – galv.

Sturdy and a perfect fit for System 30 – MEZ-CORNER 30 – Slotted hole, M10, press-fit – galv.

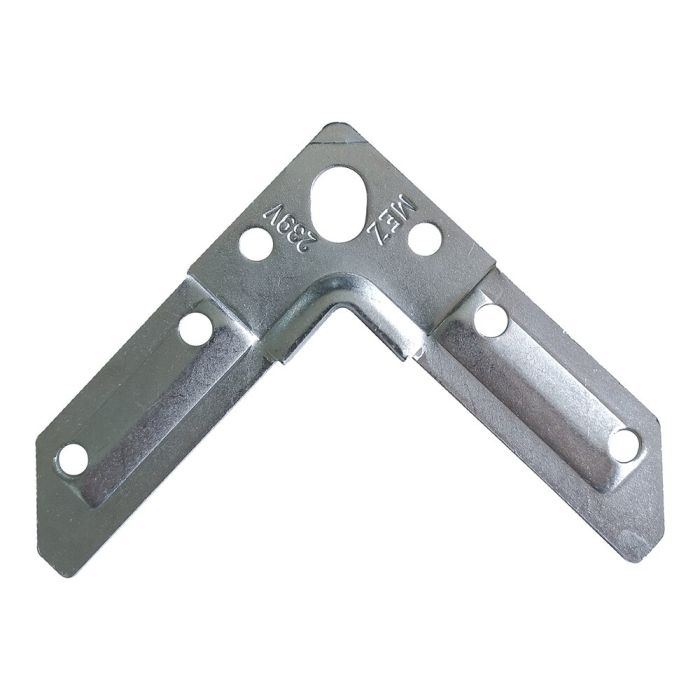

The MEZ-CORNER 30 – Slotted hole, M10, press-fit – galv. is a robust air duct profile connector for the SYPHON-FLANGE System 30 and has been developed for durable, reproducible corner joints in air duct manufacturing. The corner combines a press-fit design for additional stability with a slotted hole for flexible alignment during assembly.

In day-to-day production, stable corner joints and a clean fit are crucial, particularly for larger air ducts. Otherwise, dimensional tolerances or misalignments can quickly lead to time losses. This component supports precise alignment whilst ensuring a force-fit connection that can be reliably integrated into the manufacturing process.

Technical highlights

• Press-fitted design for increased dimensional stability and consistent quality
• Slotted hole (11 x 15 mm) allows for adjustment with M10 screw connections
• Side length approx. 103 mm for stable corner areas in large ducts
• Material thickness of 3.0 mm for robust connections
• Offset dimension 30 mm for system-compatible integration into System 30
• Through-hole mounting for a clean finish in the duct wall

Key features

• High stability thanks to pressed construction
• Flexible alignment during installation
• Reduced rework
• Suitable for large-format air ducts
• Durable thanks to galv. surface

Additional features

• Reliable system component for structured procurement
• Less rework thanks to a stable and precise-fitting connection
• Supports safe and uniform airflow

Installation

• Simple push-through installation through the duct wall
• Flexible adjustment via the slotted hole
• Quick screw connection with M10 components
• Stable fit without time-consuming rework

Why is this corner suitable for you

The MEZ-CORNER 30 – slotted, M10, crimped – galv. is the right choice when high stability and flexible installation are required in System 30. It supports efficient manufacturing processes and delivers reliable connection results – particularly for larger duct dimensions.

Application scenarios

• Production of air ducts in System 30
• Frame construction for large duct cross-sections
• Ventilation and air conditioning system construction
• Industrial and plant engineering
• Maintenance and modification of existing air duct systems

All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are non-binding. Errors excepted.
