MEZ-STANDARD-FLANGE 30

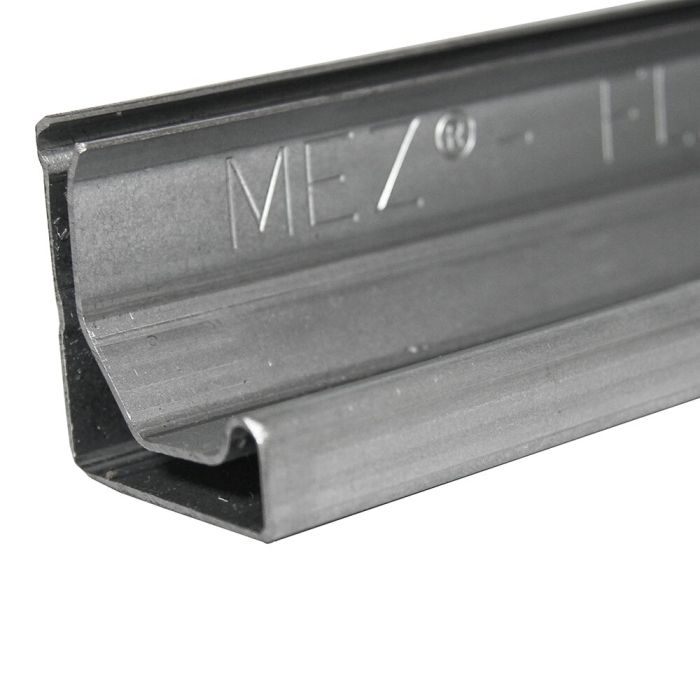

MEZ-STANDARD-FLANGE 30 - galv. – Sturdy FLANGE air duct profile for cost-effective air duct production

The MEZ-STANDARD-FLANGE 30 - galv. is a robust all-round air duct profile (FLANGE) for the cost-effective production of sturdy air ducts. Thanks to its 45-degree support flange and simple sealing bead, this air duct profile offers a good balance of stability and ease of processing. These features enable reliable connection technology. The profile provides optimal support for day-to-day production and installation work.

In practice, long edge lengths, material stresses and unstable flange frames are particularly common challenges. This air duct profile specifically addresses these requirements: the reinforced material design ensures high rigidity, whilst the sealing bead simplifies the insertion of the duct wall and speeds up installation.

Technical Highlights

• System 30 – suitable for medium and large duct cross-sections
• Galvanized steel for reliable corrosion protection
• 45° support flanges for high stability and torsional rigidity
• Simple sealing bead for easier insertion of the duct wall
• Reinforced material construction for high rigidity
• Precise profile geometry for precise-fitting connections

Key features

• High stability even with large edge lengths
• Simple and quick installation thanks to clear profile structure
• Robust design for long-term use
• Reduced installation effort thanks to simple sealing bead
• Cost-effective solution for standard applications

Additional features

• Durable profile quality reduces follow-up costs
• Quick installation and stable frame construction
• Robust connections reduce maintenance requirements
• Reliable air flow thanks to stable flanges
• Consistent profile quality and workmanship

Installation

• Easy insertion of the duct wall via sealing bead
• High stability during joining thanks to 45° support flanges
• Reliable installation even with larger duct dimensions
• Suitable for riveting, screwing or pressing
• Efficient implementation in the workshop and on site

Why is this MEZ-STANDARD-FLANGE 30 - galv. right for you

If you are looking for a sturdy, cost-effective and easy-to-work-with FLANGE air duct profile, the MEZ-STANDARD-FLANGE 30 - galv. is the ideal choice. It offers high rigidity, reduces installation effort and ensures reliable results – even in larger air duct systems.

Application scenarios

• Manufacture of rectangular air ducts
• Industrial and commercial ventilation
• Building services systems with a focus on stability
• HVAC systems with large duct cross-sections
• Mass production in air duct construction
• Plant engineering with increased requirements for dimensional stability

All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are non-binding. Errors excepted.
