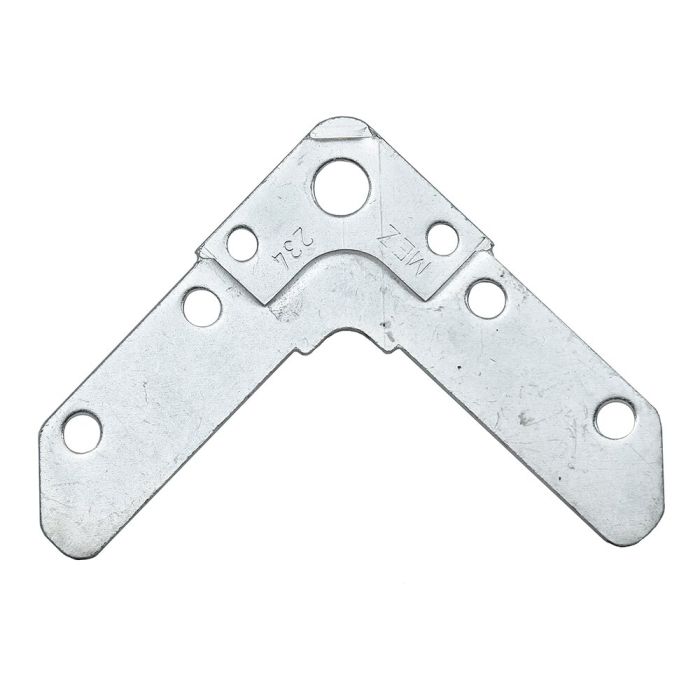

MEZ-CORNER-System 30
Round hole corner, Screw hole 11 mm
Article number
234
MEZ-CORNER-System 30 is available to buy in increments of 250
Corner for attaching the duct wall
Clearance 30 mm
Material thickness 4,00 mm
MEZ-CORNER 234 is a corner, which finds its application in the production of air control systems, in combination with the profiles MEZ-STANDARD-FLANGE, MEZ-CLASSIC-FLANGE and MEZ-ISO-FLANGE. It is a corner for the attachment of the duct wall. With a material thickness of 4.00 mm and a Clearance of 30 mm, the corner bracket is the ideal connecting piece.
Clearance 30 mm
Material thickness 4,00 mm
MEZ-CORNER 234 is a corner, which finds its application in the production of air control systems, in combination with the profiles MEZ-STANDARD-FLANGE, MEZ-CLASSIC-FLANGE and MEZ-ISO-FLANGE. It is a corner for the attachment of the duct wall. With a material thickness of 4.00 mm and a Clearance of 30 mm, the corner bracket is the ideal connecting piece.
| Teilegruppe | 110202 |
|---|---|
| Material | Verzinkt |
| Schraubloch | 11 mm |
| Ausführung | mit Rundloch |
| Dicke | 4 mm |
| Palette | 7.500 St. |
| Verpackungseinheit | 250 St. |
