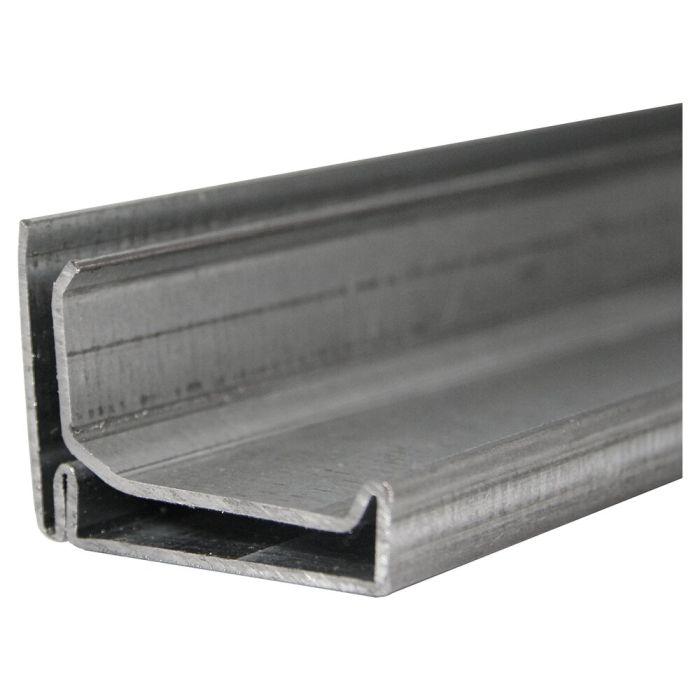

MEZ-SYPHON-FLANGE 40/L

Tight, stable and quicker to install in air duct construction

The MEZ-SYPHON-FLANGE 40/L, a air duct profile made of galvanized steel, prioritises airtightness. The integrated siphon design guides the sheet metal edge securely, acts as a sealing lip and prevents leaks right from the start. For projects with more stringent requirements, a version with injected sealant (MEZ‑Bluemastic‑GEL or Butyl-Mastic) is available – suitable for powder coating. Bar length 5,000 mm, material thickness 1.00 mm; pack size 500 m.

Leaks at frame joints cost energy, time and patience – particularly in airtight systems (ATC 2/3 or Classes C/D according to DIN EN 1507). A common cause: profiles without a defined sealing line and time-consuming re-sealing at the joint surface.

Technical highlights

• Integrated siphon and slightly chamfered inner leg: secure guidance of the duct wall, less rework, high tightness.
• Optional injected sealant: meets tightness classes C/D in accordance with DIN EN 1507; VDI 6022-compliant applications possible.
• 45° support leg and defined fastening area: stable frame for welding, riveting, bolting or press-fitting.
• Quality from European steel expertise: reliable material quality & focus on sustainability
•

Key features

• High sealing performance thanks to integrated siphon geometry
• Sturdy 45° support flange, less rework during assembly
• Standard length 5,000 mm, 1.00 mm – ideal for series production (packaging units from 500 m)

Additional features

• Planning reliability thanks to standardised lengths/packaging units
• Fewer complaints thanks to a leak-tight system
• Lower leakage rates mean stable airflows and reduced energy losses during operation

Installation

• Faster installation, as the bevelled edge facilitates insertion
• The profile tab secures the connectors
• Less re-sealing required at joints

Why is this air duct profile right for you?

With the MEZ‑SYPHON‑FLANGE 40/L – galv., you are ensuring an air duct profile that consistently combines airtightness, stability and installation efficiency. The integrated siphon geometry and precise sheet metal guidance not only reduce leaks but also lower manufacturing and service costs throughout the entire system lifecycle.

Application scenarios

• Leak-tight air duct networks in industrial and process air technology (ATC 2/3)
• Hygienic ducts in accordance with VDI 6022 (e.g. hospitals, pharmaceutical industry)
• Systems with energy-efficient control (minimised leakage losses)
