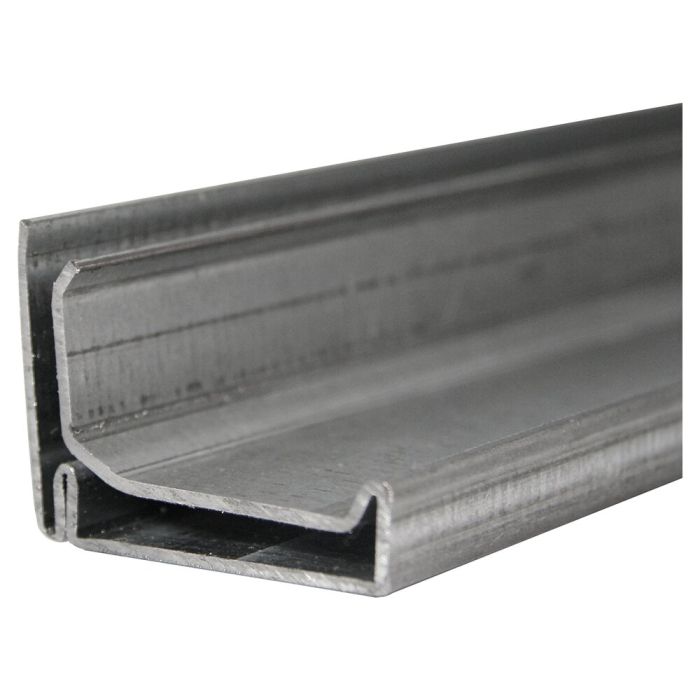

MEZ-SYPHON-FLANGE 40/L

MEZ-SYPHON-FLANGE 40/L - galv. – FLANGE Air duct profile with MEZ-Bluemastic-GEL for the most stringent sealing requirements

The MEZ-SYPHON-FLANGE 40/L - galv. is a profile designed for large air ducts. It meets the highest standards of airtightness. The profile combines a built-in siphon with MEZ-Bluemastic-GEL. The factory fills this gel directly during manufacture. The profile therefore seals the air duct immediately. This saves additional work steps and always delivers reliable results.

In practice, large duct cross-sections and complex connections often lead to leaks, rework and increased time expenditure. This air duct profile specifically addresses these challenges: the integrated seal and the robust design of the profiles enable rapid production of air ducts. These components meet the requirements of tightness classes C and D in accordance with standard DIN EN 1507. This allows professionals to construct high-quality ducts that lose little air and save energy.

Technical highlights

• System 40/L – ideal for large air duct systems
• Galvanized steel for reliable corrosion protection
• Factory-injected sealing compound MEZ-Bluemastic-GEL
• Integrated siphon geometry to prevent air leaks
• Flanged insertion bevel for easy duct connection
• Inner flange with sealing lip function for additional sealing
• Sturdy support flange for high dimensional and torsional rigidity
• Suitable for tightness classes C & D in accordance with DIN EN 1507

Key features

• Maximum tightness without additional sealing measures
• Reduced installation and rework effort
• Reliable compliance with high tightness requirements
• Stable even with large-format air ducts
• Efficient and cost-effective production

Additional features

• Reduced need for additional materials and simplified costing
• Faster manufacturing processes thanks to integrated seal
• Permanently airtight joints reduce maintenance requirements
• Minimised energy losses due to high airtightness
• Reproducible results without variations

Installation

• Quick insertion of the duct wall thanks to the chamfered edge
• No manual application of sealants required
• Secure fit thanks to the sealing lip effect of the inner flange
• High stability during joining due to sophisticated profile geometry
• Suitable for riveting, screwing, welding or crimping

Why is this MEZ-SYPHON-FLANGE 40/L - galv. right for you

Are you looking for a sturdy profile for large ventilation systems? The MEZ-SYPHON-FLANGE 40/L - galv. offers you the right solution. The profile securely connects the ducts and reliably retains air within the system. It meets even the highest standards for airtightness. It combines maximum airtightness, stability and cost-effectiveness, ensuring durable, standard-compliant air duct systems.

Application scenarios

• Manufacture of large-scale air ducts
• Industrial and commercial ventilation
• Building services systems with the highest airtightness requirements
• HVAC systems for high air volumes
• Plant engineering with complex duct networks
• Series production in professional air duct construction
