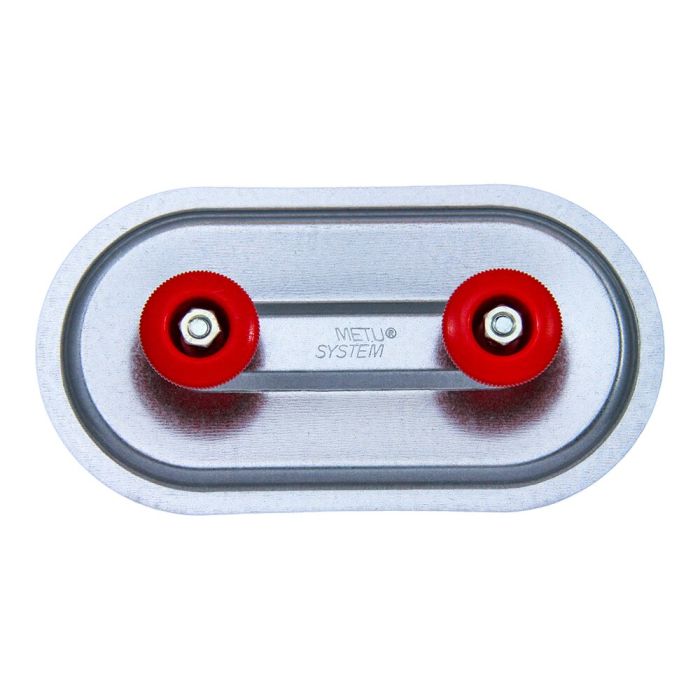

Access door RD 21
For rectangular air ducts, 200 x 100 mm
Article number
601
Access door RD 21 is available to buy in increments of 1
Opening size: 200 x 100 mm
With PE gasket
Heat stability -70°C to +70°C
MEZ-ACCESS DOOR RD 21 is an inspection opening for rectangular air ducts. The RD 21 is made of galvanised steel and has a gasket made of polyethylene. The two knobs, which consists of POM, allow a comfortable handling and operation of the access door and they have a maximum tensioning force from 1.000 to 1.500 Nm. The MEZ-ACCESS DOOR RD 21 is useable for a temperature range from -70 to +70°C. The opening size is 200 x 100 mm, the clearance between the duct wall and the upper edge of the knob or lever in closed.
With PE gasket
Heat stability -70°C to +70°C
MEZ-ACCESS DOOR RD 21 is an inspection opening for rectangular air ducts. The RD 21 is made of galvanised steel and has a gasket made of polyethylene. The two knobs, which consists of POM, allow a comfortable handling and operation of the access door and they have a maximum tensioning force from 1.000 to 1.500 Nm. The MEZ-ACCESS DOOR RD 21 is useable for a temperature range from -70 to +70°C. The opening size is 200 x 100 mm, the clearance between the duct wall and the upper edge of the knob or lever in closed.
| Teilegruppe | 160102 |
|---|---|
| Material | Stahl verzinkt |
| Verpackungseinheit | 1 St. |
