Access door RD 53
Access door RD 53 | 500x300 mm, galvanized steel
Article number
605
Access door RD 53 is available to buy in increments of 1
Versatile inspection opening for rectangular air duct systems
Air tightness class D according to DIN EN 1507

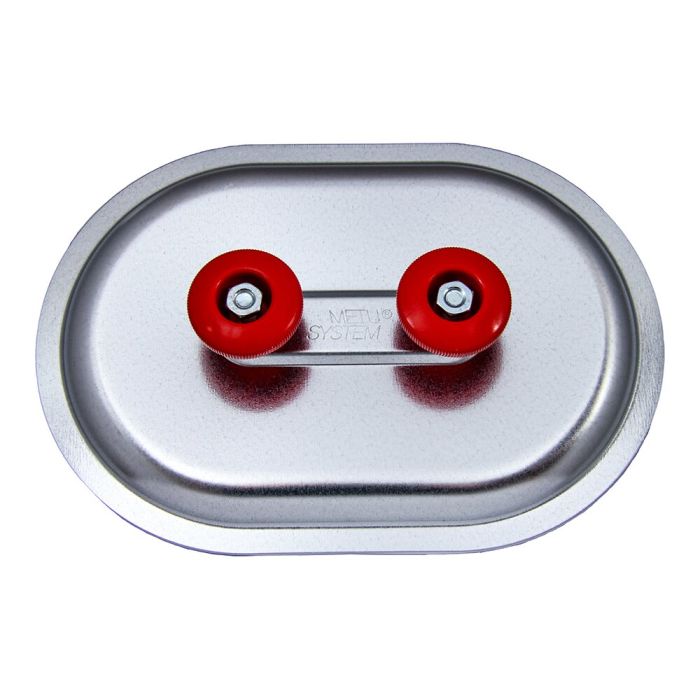

Access door RD 53 is an inspection door for rectangular air duct systems. The inspection cover RD 53 is made of galvanised steel and has a polyethylene seal. The two rotary handles, which allow two-handed and safe handling, are made of POM-C and have a maximum clamping force of 1,000 to 1,500 Nm.
The inspection opening RD 53 is designed for a temperature range of -70°C to +70°C and the cut-out of the RD 53 is 500 x 300 mm, the installation height is approx. 56 mm and the maximum pressure of the RD 53 is 2,500 Pa.
Air tightness class D according to DIN EN 1507
Access door RD 53 is an inspection door for rectangular air duct systems. The inspection cover RD 53 is made of galvanised steel and has a polyethylene seal. The two rotary handles, which allow two-handed and safe handling, are made of POM-C and have a maximum clamping force of 1,000 to 1,500 Nm.
The inspection opening RD 53 is designed for a temperature range of -70°C to +70°C and the cut-out of the RD 53 is 500 x 300 mm, the installation height is approx. 56 mm and the maximum pressure of the RD 53 is 2,500 Pa.
| Teilegruppe | 160102 |
|---|---|
| Material | Stahl verzinkt |
| Verpackungseinheit | 1 St. |
