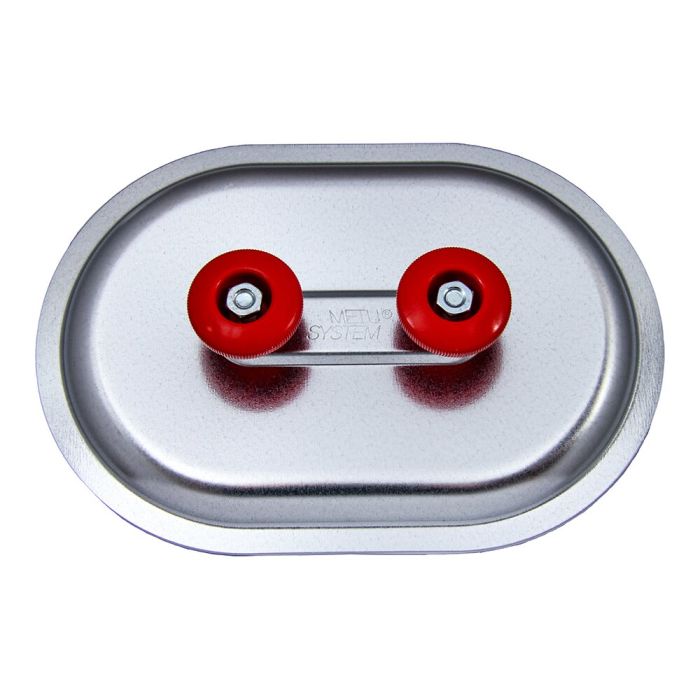

Access door RD 54
For rectangular air ducts, 500 x 400 mm
Article number
606
Access door RD 54 is available to buy in increments of 1
Opening size: 500 x 400 mm
With PE gasket
Heat stability -70°C to +70°C
MEZ-ACCESS DOOR RD 54 is an inspection opening for rectangular air ducts. The RD 54 is made of galvanised steel and has a gasket made of polyethylene. The two knobs, which consists of POM, allow a comfortable handling and operation of the access door and they have a maximum tensioning force from 2.000 to 3.000 Nm. The MEZ-ACCESS DOOR RD 54 is useable for a temperature range from -70 to +70°C. The opening size is 500 x 400 mm, the clearance between the duct wall and the upper edge of the knob or lever in closed position should be approx. 67 mm and the maximum pressure is 2.500 Pa.
With PE gasket
Heat stability -70°C to +70°C
MEZ-ACCESS DOOR RD 54 is an inspection opening for rectangular air ducts. The RD 54 is made of galvanised steel and has a gasket made of polyethylene. The two knobs, which consists of POM, allow a comfortable handling and operation of the access door and they have a maximum tensioning force from 2.000 to 3.000 Nm. The MEZ-ACCESS DOOR RD 54 is useable for a temperature range from -70 to +70°C. The opening size is 500 x 400 mm, the clearance between the duct wall and the upper edge of the knob or lever in closed position should be approx. 67 mm and the maximum pressure is 2.500 Pa.
| Teilegruppe | 160102 |
|---|---|
| Material | Stahl verzinkt |
| Ausschnitt | 500 x 400 mm |
| Verpackungseinheit | 1 St. |
If you miss a download, please write us via our contact form.
| Product range | Type | Description | Language | File extension | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
