Access door RD 64 - AL

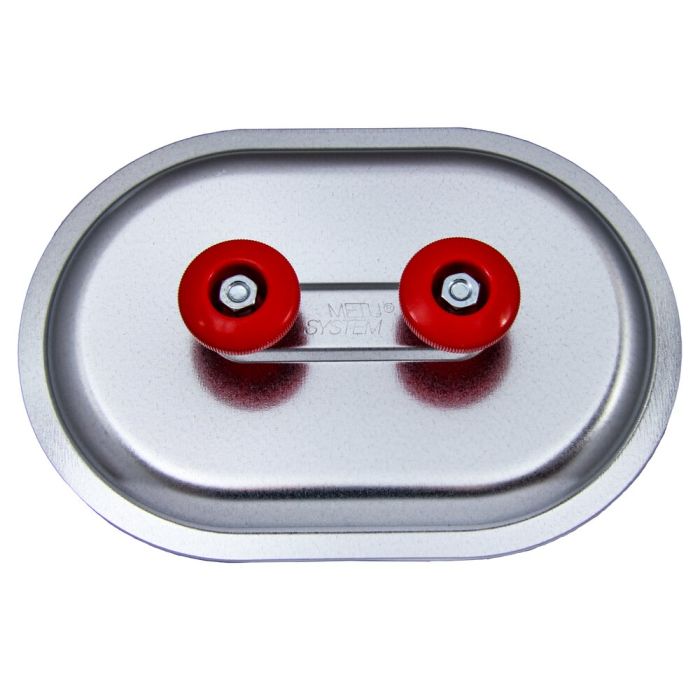

Access door RD 64 - AL | 600x400 mm, aluminium
Article number
607A
Access door RD 64 - AL is available to buy in increments of 1
Versatile inspection opening for rectangular air duct systems
Air tightness class D according to DIN EN 1507
Access door RD 64 is an inspection door for rectangular air duct systems. The Access Door RD 64 is made of aluminium and has a polyethylene seal. The two rotary handles, which allow two-handed and safe handling, are made of POM-C and have a maximum clamping force of 1,000 to 1,500 Nm.
The inspection opening RD 64 is designed for a temperature range of -70°C to +70°C and the cut-out of the RD 64 is 600 x 400 mm, the installation height is approx. 67 mm and the maximum pressure of the RD 64 is 2,500 Pa.
Air tightness class D according to DIN EN 1507
Access door RD 64 is an inspection door for rectangular air duct systems. The Access Door RD 64 is made of aluminium and has a polyethylene seal. The two rotary handles, which allow two-handed and safe handling, are made of POM-C and have a maximum clamping force of 1,000 to 1,500 Nm.
The inspection opening RD 64 is designed for a temperature range of -70°C to +70°C and the cut-out of the RD 64 is 600 x 400 mm, the installation height is approx. 67 mm and the maximum pressure of the RD 64 is 2,500 Pa.
| Part group | 160102 |
|---|---|
| Material | Aluminium |
| Packaging unit | 1 St. |
If you miss a download, please write us via our contact form.
| Product range | Type | Description | Language | File extension | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
