Access door RRD 18-12 - HT
Access door RRD 18-12 - HT | 180x80 mm, galvanized steel | Ø 125 mm, heat-resistant
Article number
630/125H
Access door RRD 18-12 - HT is available to buy in increments of 1
Suitable for high temperatures (heat resistant version)
With glass fibre seal
Heat resistant up to +200°C

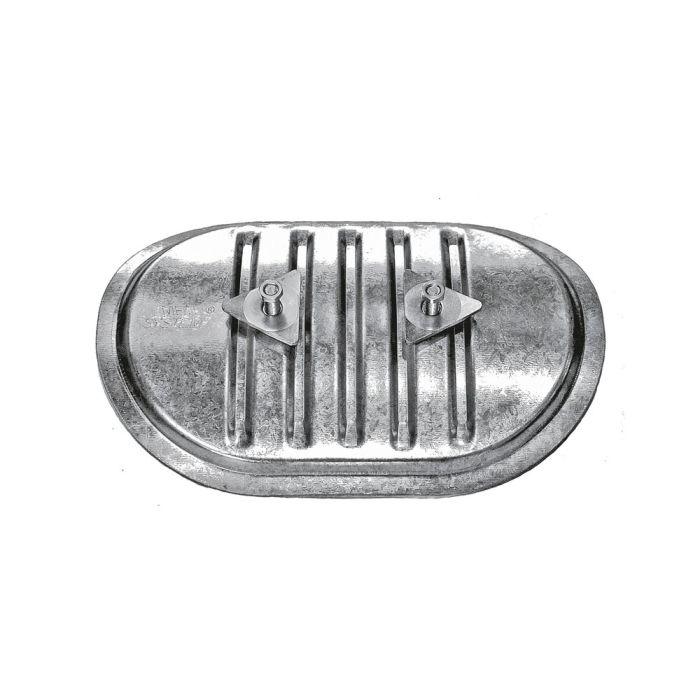

Revision RRD 18 HT is an inspection cover for circular air duct systems and is also designed for particularly high temperature requirements. The inspection cover RRD 18 HT is made of galvanised steel and has a glass fibre seal. The two metal star-shaped handles allow safe handling with both hands and have a maximum clamping force of 1,000 to 1,500 Nm.
The inspection opening RRD 18 HT is designed for particularly high temperature ranges of +200°C, the cut-out of the RRD 18 is 180 x 80 mm and the standard pipe diameter is NW 125. The installation height is approx. 36 mm and the maximum pressure of the RRD 18 is ± 2,500 Pa.
With glass fibre seal
Heat resistant up to +200°C
Revision RRD 18 HT is an inspection cover for circular air duct systems and is also designed for particularly high temperature requirements. The inspection cover RRD 18 HT is made of galvanised steel and has a glass fibre seal. The two metal star-shaped handles allow safe handling with both hands and have a maximum clamping force of 1,000 to 1,500 Nm.
The inspection opening RRD 18 HT is designed for particularly high temperature ranges of +200°C, the cut-out of the RRD 18 is 180 x 80 mm and the standard pipe diameter is NW 125. The installation height is approx. 36 mm and the maximum pressure of the RRD 18 is ± 2,500 Pa.
| Teilegruppe | 160204 |
|---|---|
| Material | Stahl verzinkt |
If you miss a download, please write us via our contact form.
| Product range | Type | Description | Language | File extension | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
