Access door RRD 32-28 - HT
300 x 200, dia. 280 mm, up to +200°C
Article number
632/280H
Access door RRD 32-28 - HT is available to buy in increments of 1

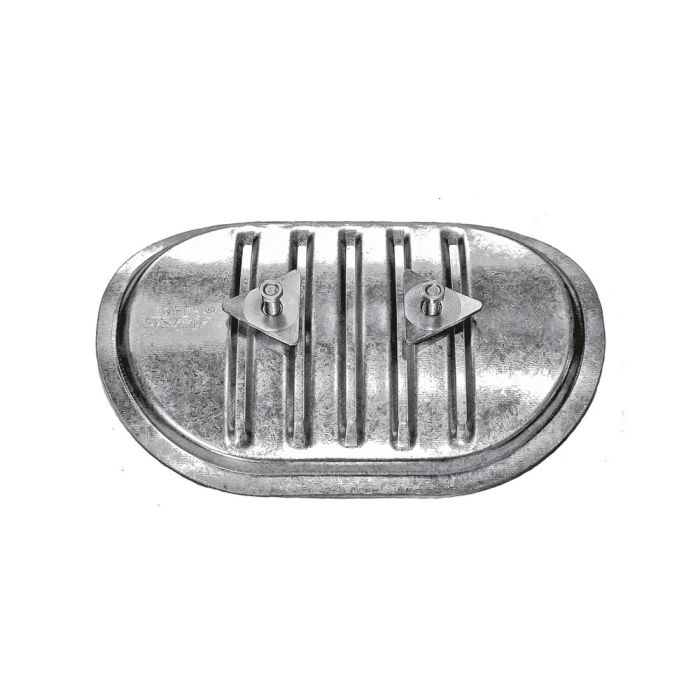

The MEZ-ACCESS DOOR RRD 32-28 HT is suitable for circular ducts with a nominal size of 280 mm and high temperatures. The gasket of the RRD 32-28 HT, which is made of galvanised steel, consists of vitreous fibers and it is equipped with two metal knobs. Those two knobs allow a comfortable handling and operation of the MEZ-ACCESS DOOR RRD 32-28 HT. The heat stability is up to +200°C, the clearance between the upper edge of the knob or lever in closed position should be approx. 55 mm and the maximum pressure is 2.500 Pa.Technical characteristics
Opening size: 300 x 200 mm
For circular ducts and high temperatures
Nominal size: 280 mm
Opening size: 300 x 200 mm
For circular ducts and high temperatures
Nominal size: 280 mm
| Teilegruppe | 160204 |
|---|---|
| Material | Stahl verzinkt |
