Access door RRD 18-12 - SKK AL
Access door RRD 18-12 - SKK AL | 180x80 mm, aluminium | Ø 125 mm, with edge protection
Article number
630/125KA
Access door RRD 18-12 - SKK AL is available to buy in increments of 1
With self-adhesive edge protection
Edge protection serves as protection against injuries and for sealing
Heat resistant from -70°C to +80°C

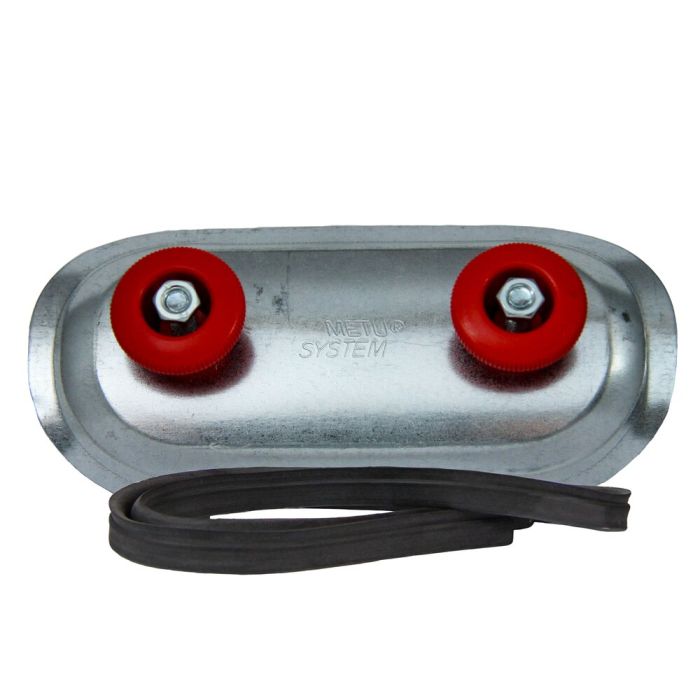

Revision RRD 18 SKK is an inspection cover for circular air duct systems and has a self-adhesive edge protection which serves both as protection against injury and to seal the inspection opening. The inspection cover RRD 18 SKK is made of aluminium and has a polyethylene seal. The two rotary handles, which allow two-handed and safe handling, are made of POM-C and have a maximum clamping force of 1,000 to 1,500 Nm.
The inspection opening RRD 18 SKK is designed for a temperature range of -70°C to +80°C, the cut-out of the RRD 18 SKK is 180 x 80 mm and the standard pipe diameter is NW 125. The installation height is approx. 36 mm and the maximum pressure of the RRD 18 is ± 2,500 Pa.
Edge protection serves as protection against injuries and for sealing
Heat resistant from -70°C to +80°C
Revision RRD 18 SKK is an inspection cover for circular air duct systems and has a self-adhesive edge protection which serves both as protection against injury and to seal the inspection opening. The inspection cover RRD 18 SKK is made of aluminium and has a polyethylene seal. The two rotary handles, which allow two-handed and safe handling, are made of POM-C and have a maximum clamping force of 1,000 to 1,500 Nm.
The inspection opening RRD 18 SKK is designed for a temperature range of -70°C to +80°C, the cut-out of the RRD 18 SKK is 180 x 80 mm and the standard pipe diameter is NW 125. The installation height is approx. 36 mm and the maximum pressure of the RRD 18 is ± 2,500 Pa.
| Teilegruppe | 160203 |
|---|---|
| Material | Aluminium |
If you miss a download, please write us via our contact form.
| Product range | Type | Description | Language | File extension | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
