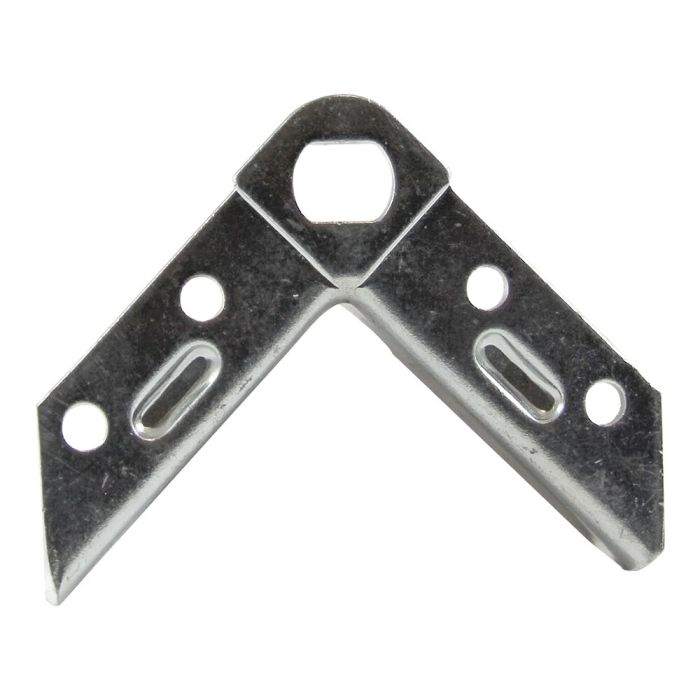

MEZ-1-PART-CORNER, SYSTEM 20

Precision corner brackets for stable duct corners

In ventilation and building services engineering, the quality of the corner determines the dimensional accuracy, stability and efficiency of the entire duct frame. Inaccurate corner brackets, unstable duct corners or the need for extensive adjustment often lead to rework, wasted time and potential leakage issues. The MEZ-CORNER SYSTEM 20 was developed to reliably prevent precisely these weak points.

As a precisely fitting MEZ-CORNER corner bracket for moulded profiles in System 20, the product connects the profile and the profile corner to form a form-fitting, stable unit. The precisely matched geometry enables reproducible 90° angles and ensures consistently high quality in both production and installation.

Key features

• Precisely fitting corner bracket for System 20 channels
• Reproducible, right-angled channel corners
• High stability thanks to form-fitting corner connection
• Significantly reduced adjustment and reworking effort
• Supports dimensionally accurate and airtight air duct frames

Additional features

• Uniform force transmission into the profile, minimising warping
• High dimensional accuracy for consistent quality in series production and assembly
• Robust, industrial design for continuous operation
• Reduced complaints and follow-up costs
• Suitable for production, assembly and long-term operation

Assembly

• Quick, secure installation thanks to clear positioning of the corner bracket
• Easy alignment of the profiles without additional tools
• Fewer corrections on site or during production
• Reproducible results even during mass installation

Why is this inspection opening right for you?

If you expect more from corner brackets than just a simple connection, the MEZ-CORNER SYSTEM 20 is the right choice. The solution is specifically aimed at purchasers, fitters and manufacturers. You value reliable quality, efficient processes and durable profile corners. The precise fit and high dimensional accuracy reduce follow-up costs. Furthermore, installation quality is improved and a permanently stable corner joint is ensured. The result is greater operational reliability throughout the entire lifecycle of air duct frames.

Application scenarios

• Frame construction for rectangular air ducts in System 20
• Series production of air duct profiles
• Installation of ventilation and building services components
• Use in industrial air duct systems
