MEZ-1-PART-CORNER, SYSTEM 30

Simple corner joint for moulded profiles in System 30

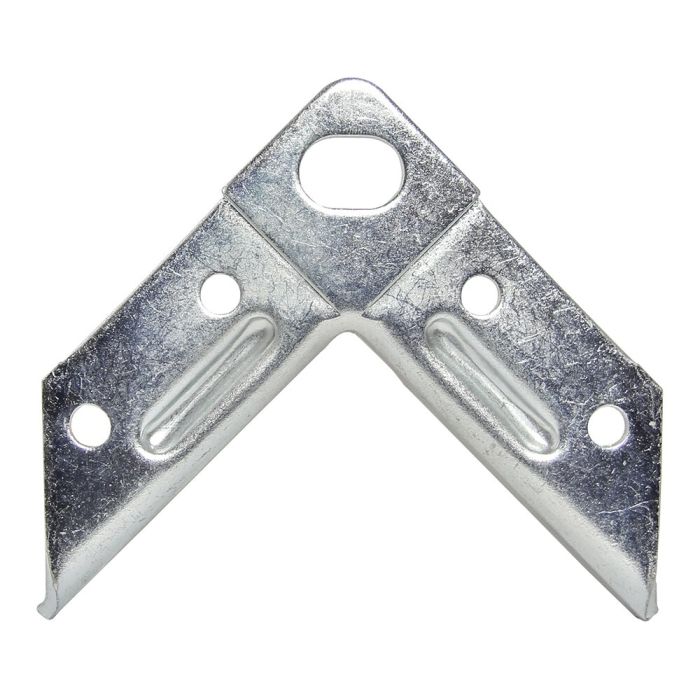

The MEZ-CORNER 209 is a one-piece corner joint for moulded profiles in System 30. It is ideally suited for FIRMAC duct runs as well as applications with moulded flanges, and facilitates the construction of stable frame structures in air duct installation. The one-piece design enables quick and cost-effective installation. This reduces installation effort and optimises your manufacturing processes.

The MEZ-CORNER 209 was developed specifically for extruded profiles and ensures a precise corner fit within the System 30. This results in reliable connections for air ducts and frame structures. The galv. surface provides reliable protection against corrosion and ensures a long service life in daily use.

Technical highlights

• One-piece design
• For extruded profiles in the System 30
• Suitable for FIRMAC duct assembly lines and extrusion flanges
• Precise integration into the System 30
• Galv. surface
• Robust design for professional use

Key features

• Simple and cost-effective installation
• Precision-fit corner joint for moulded profiles
• Corrosion-protected design
• Reduced installation effort
• Suitable for industrial manufacturing processes

Additional features

• Supports stable frame structures
• Suitable for applications in air duct construction
• High dimensional accuracy during installation
• Durable and robust system component

Installation

• Simple integration into formed profiles of the System 30
• Quick installation in production and assembly
• Precise fit in frame structures
• Suitable for air ducts with formed flanges

Why is this MEZ-CORNER System 30 right for you

The MEZ-CORNER 209 is the right choice when a simple, stable and cost-effective corner joint is required for moulded profiles in the System 30. The one-piece design reduces installation effort and supports efficient manufacturing processes in air duct construction. At the same time, the galv. surface ensures long-lasting and reliable use.

Application scenarios

• FIRMAC duct assembly lines
• Air duct construction with formed flanges
• Frame structures in System 30
• Ventilation and air-conditioning system construction
• Industrial and plant engineering
