MEZ-2-PART-CORNER System 20

Precision-fit corner joint for moulded profiles in System 20

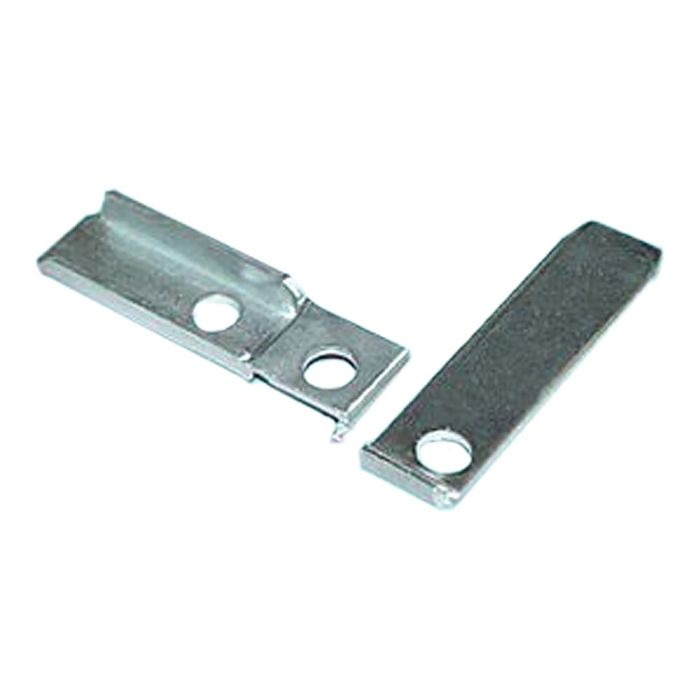

The MEZ-CORNER flat section System 20 202/01 has been specially developed for moulded profiles in System 20. It ensures stable and precision-fit corner joints in air duct construction. You benefit from easy integration into existing manufacturing processes. The precision-fit design facilitates quick assembly and reduces the need for rework.

The flat component is suitable for FIRMAC duct assembly lines as well as applications with moulded flanges. When combined with the matching moulded component, it creates a precise Z-corner for a reliable connection within the profile system. The galvanized steel construction offers reliable corrosion protection and ensures a long service life in daily use.

Technical highlights

• Flat section for moulded profiles, System 20
• Suitable for FIRMAC duct assembly lines and moulded flanges
• Component of a Z-corner
• A flat section and a moulded section are required for the Z-corner
• Galv. finish
• Precisely tailored for applications in air duct construction

Key features

• Precise corner design for moulded profiles
• System-compatible integration into System 20
• Corrosion-protected surface
• Easy to work with during production
• Robust design for professional use

Additional features at a glance

• Supports stable corner joints
• Suitable for industrial manufacturing processes
• High fitting accuracy during assembly
• Reduces rework thanks to a system-compatible design

Assembly

• For use in combination with the matching moulded part
• Installation in moulded profiles of System 20
• Easy integration into existing production processes
• Suitable for the manufacture of Z-corners

Why is this MEZ-CORNER flat section System 20 right for you?

The MEZ-CORNER Flat Part System 20 202/01 is the right choice when moulded profiles need to be joined precisely and reliably. The precise fit supports efficient manufacturing processes and ensures stable corner joints. At the same time, it reduces assembly effort and ensures consistently high quality in air duct construction.

Application scenarios

• FIRMAC duct assembly lines
• Air duct construction with moulded flanges
• Production of Z-joints
• Ventilation and air-conditioning system construction
• Industrial and plant engineering
