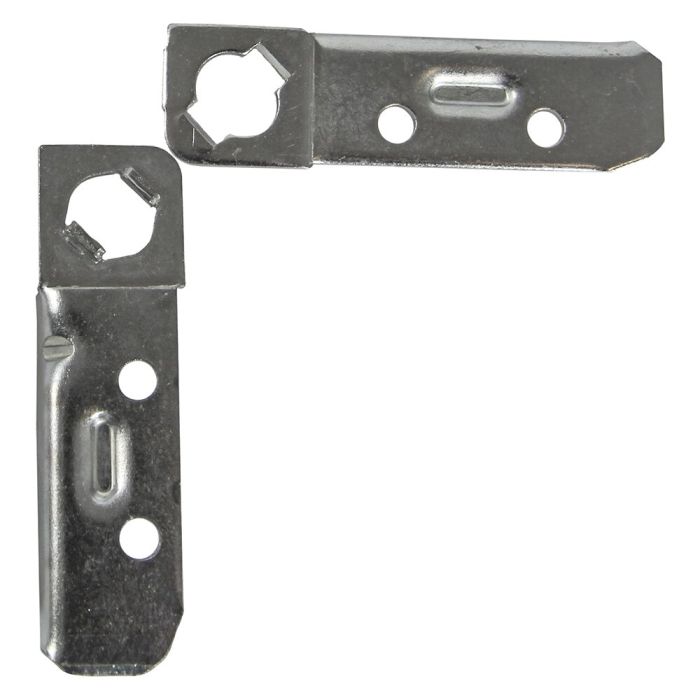

MEZ-2-PART-CORNER, SYSTEM 20

Sturdy corner bracket for precise profile corners in the System 20

In air duct production and installation, profile corners must be precise, dimensionally stable and quick to install. Inaccurate corner brackets lead to misalignment, stress in the frame and increased installation and rework costs – particularly with moulded profiles in the System 20.

The MEZ-CORNER SYSTEM 20 is a robust corner bracket designed specifically for this application. It enables precise 90° profile corners and provides a reliable basis for durable, dimensionally stable air duct frames in ventilation and building services engineering.

Key features

• Corner bracket for moulded profiles in System 20
• Manufactured from galvanized steel
• Precise, right-angled profile corners
• High dimensional and shape stability
• Suitable for industrial production and installation

Additional features

• Combination of high material robustness and practical geometry
• Sturdy design for reproducible clearance dimensions
• Uniform force transmission in the corner area
• Reduction of warping and stresses in the profile frame
• Minimised risk of potential leaks
• Galvanized steel for high durability in the operating environment of ventilation systems

Installation

• Precise integration into moulded profiles of the System 20
• Clear contact surfaces for quick and secure alignment
• No time-consuming readjustment required
• Suitable for pre-assembly in production
• Efficient and time-saving installation on site
• Consistently precise results throughout all installation steps

Why is this corner suitable for you?

The MEZ-CORNER SYSTEM 20 is the right choice for anyone who prioritises process reliability, precise fit and long-lasting quality when it comes to profile corners. At the same time, it reduces installation time and minimises sources of error.

Application scenarios

• Corner joints for moulded profiles in System 20
• Manufacture of rectangular air ducts
• Frame constructions in ventilation and building services systems
• Series production and professional installation
