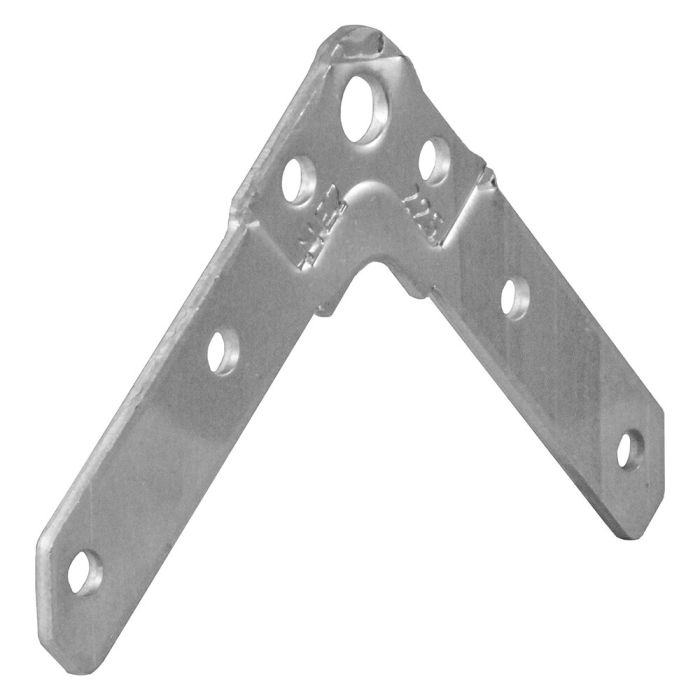

MEZ-CORNER, System 20

Round hole corner, Screw hole 9 mm, alu,
Article number
225A
Loading...
Your price:
MEZ-CORNER, System 20 is available to buy in increments of 400

Lightweight and versatile corner joint



The MEZ-CORNER 20 – long, round hole – ALU is a particularly lightweight corner joint for the STANDARD & ISO-FLANGE System 20 and is ideal as a connecting piece for air duct profiles in modern air duct manufacturing. Thanks to its aluminium construction, the corner offers a good combination of low weight and sufficient stability – ideal for applications where weight is a factor.

In practice, ease of use and flexible system compatibility are crucial, particularly for longer duct runs or special requirements. This is precisely where this design excels: the corner is placed on the duct wall, enabling a clean, reproducible connection with internal Sealing.



Technical highlights

  • Long leg design (95 mm) for stable corner joints
  • Aluminium design for low weight with good stability
  • Round hole (9 x 12 mm) for easy screw connection
  • Dimensions suitable for compact flange solutions
  • Compatible with STANDARD and ISO-FLANGE System 20
  • Top-mounted installation with sealing on the inside of the duct wall



Key features

  • Significantly lighter than steel variants
  • Universally applicable in two flange systems
  • Clean and uniform corner joints
  • Easy to process in production
  • Corrosion-resistant thanks to aluminium



Additional features

  • Reduction in variant numbers due to cross-system applicability
  • Easy handling during maintenance and replacement
  • Reliable airflow due to clean Sealing



Installation

  • Simple placement on the duct wall
  • Quick screw connection via round hole
  • Easy handling due to low weight
  • Suitable for workshop and on-site installation



Why is this corner bracket suitable for you

The MEZ-CORNER 20 – long, round hole – ALU is the ideal solution for anyone requiring a lightweight, flexible and cross-system corner joint in air duct construction. It simplifies installation, reduces the weight of the structure and ensures reliable results in the System 20.



Application scenarios

  • Air duct production in the STANDARD and ISO-FLANGE System 20
  • Weight-sensitive constructions
  • Ventilation and air conditioning system construction
  • Industrial and plant engineering
  • Maintenance and extension of existing air duct systems



All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are non-binding. Errors excepted.

Features
System20er
Part group110201
MaterialAluminium
Screw hole9 mm
Clearance30 mm
VersionWith round hole
Packaging unit400 St.
