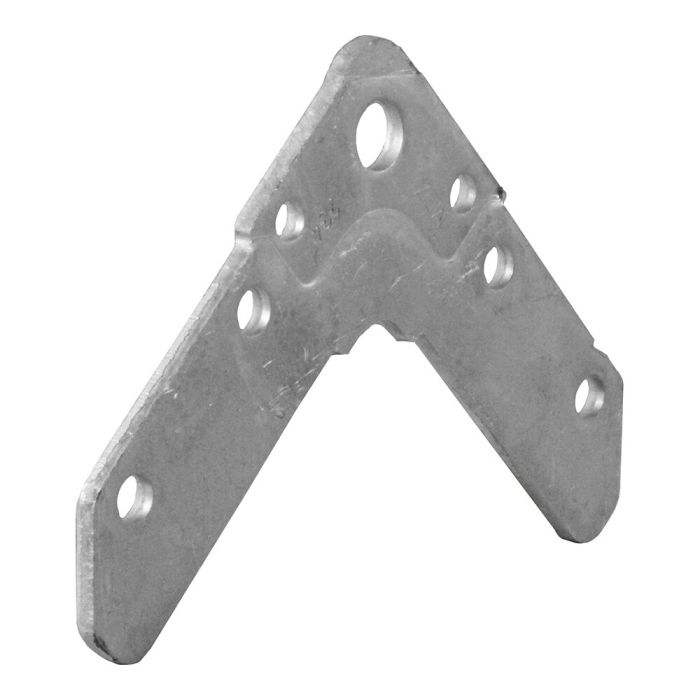

MEZ-CORNER, System 30
MEZ-CORNER, System 30 | aluminium
Article number
234A
MEZ-CORNER, System 30 is available to buy in increments of 250
Corner for attaching the duct wall
Clearance 30 mm
Material thickness 4,00 mm
MEZ-CORNER 234 Aluminium is a corner which is used in the production of air guiding systems, in combination with the profiles MEZ-STANDARD-FLANGE and MEZ-ISO-FLANGE. It is a corner for the attachment of the duct wall. With a material thickness of 4.00 mm and a Clearance of 30 mm, the corner bracket is the ideal connecting piece.
| Part group | 110202 |
|---|---|
| Material | Aluminium |
| Thickness | 4 mm |
