MEZ-CORNER-System 40
Precise and stable corner connections with the MEZ-CORNER angle bracket
In air duct construction, inaccurate corner connections often lead to fitting issues, time loss, and unnecessary rework. Especially with 40 mm air duct profiles, precise and repeatable connections are essential for efficient workflows.

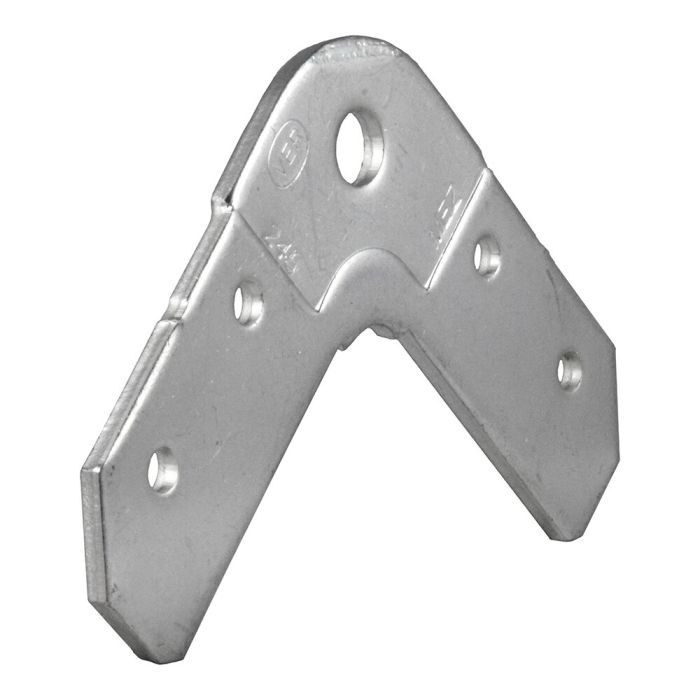

The MEZ-CORNER 40 – round hole – VZ is a high-quality angle bracket specifically designed for these requirements. The profile corner made of galvanized steel ensures a durable, corrosion-resistant connection. The round hole enables a defined fastening. Compared to standard slotted hole solutions, it allows less tolerance, ensuring higher dimensional accuracy and stable frame constructions.
Top advantages
- Precise fastening thanks to round hole
- High dimensional accuracy for air duct profiles
- Galvanized steel for reliable corrosion protection
- Reduced installation effort
- Stable and durable connection
Additional advantages
- Reproducible assembly results, even in series production
- Reduced rework and adjustment effort
- Clean alignment of the profile corner without misalignment
- Compatible with standard 40 mm air duct profiles
- Reliable quality for industrial applications
Installation
The MEZ-CORNER angle bracket can be quickly and precisely inserted into 40 mm air duct profiles. Its exact geometry and round hole allow direct fastening without time-consuming alignment. This significantly speeds up and simplifies installation both in the workshop and on-site.
Why is this angle bracket right for you?
Purchasers benefit from consistently high product quality and reduced complaints. Installers save time thanks to easy handling and precise fit. For service and maintenance teams, the stable connection means less rework and long-term reliable performance of air duct systems.
Application scenarios
- Connection of 40 mm air duct profiles
- Manufacturing of rectangular air ducts
- Use in HVAC and building services engineering
- Series production of air duct systems
- Maintenance and replacement of existing connections
| Part group | 110203 |
|---|---|
| Material | Galvanized steel |
| Screw hole | 13 mm |
| Clearance | 30 mm |
| Versioin | With round hole |
| Packaging unit | 50 St. |
