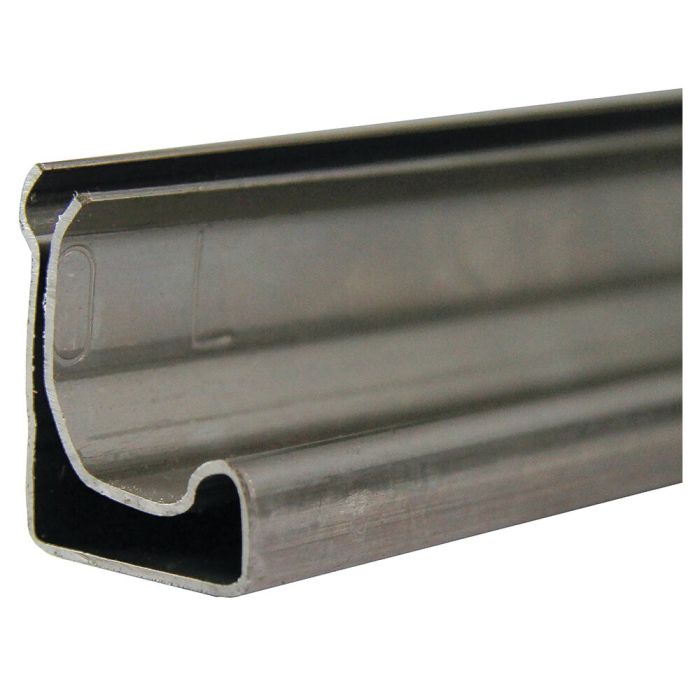

MEZ-STANDARD-FLANGE 20 V2A

Stainless steel flange for sturdy and cost-effective air ducts

The MEZ-STANDARD-FLANGE 20 - AISI 304 is a tried-and-tested profile for air ducts. It is made from high-quality stainless steel. Companies use this profile to build sturdy air systems whilst saving on costs. The profile does away with complicated technology. It uses a simple sealing bead. This ensures a robust construction. The material is durable and remains stable. Skilled workers can install the profile quickly and easily.

In practice, long edge lengths, material stresses and challenging installation situations often present challenges. This air duct profile offers a reliable solution: The combination of reinforced stainless steel, a stabilising 45° support flange and a well-designed profile shape ensures safe and cost-effective installation.

Technical Highlights

• AISI 304 stainless steel (1.4301) for high corrosion resistance
• System 20 – suitable for compact air ducts
• 45° support flange for optimum stability
• Simple sealing bead for easier insertion of the duct wall
• Robust material design for increased load-bearing capacity
• Precise profile geometry for precise-fit connections

Key features

• High stability even with longer duct runs
• Simple and quick installation thanks to clear profile structure
• Durable thanks to high-quality Stainless steel
• Reduced installation effort thanks to easy handling
• Cost-effective solution for standard applications

Additional features at a glance

• Durable stainless steel quality reduces replacement and follow-up costs
• Quick installation thanks to simple profile geometry
• Sturdy flange frame reduces maintenance requirements
• Reliable connection for long-term system operation
• Consistent installation without complex additional measures

Assembly

• Easy insertion of the duct wall thanks to sealing bead
• High stability during joining thanks to 45° support flanges
• Reliable installation even with longer duct runs
• Suitable for rivets, screws or welded joints
• Efficient implementation in the workshop and on site

Why is this MEZ-STANDARD-FLANGE 20 - AISI 304 right for you

If you are looking for a reliable and cost-effective FLANGE air duct profile for stable air duct connections, the MEZ-STANDARD-FLANGE 20 - AISI 304 is the ideal choice. It impresses with its ease of use, high stability and durable stainless steel quality – ideal for standard applications in air duct production.

Application scenarios

• Manufacture of rectangular air ducts
• Industrial and commercial ventilation
• Standard applications in the building services sector
• HVAC systems with a focus on stability
• Series production of air ducts
• Plant engineering with medium load requirements

All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are non-binding. Errors excepted.
