Access doo rRRD 21-20+22 - VZ
circular air ducts, 200 x 100 mm, Dia. 200/224 mm
Article number
631/200
Access doo rRRD 21-20+22 - VZ is available to buy in increments of 1

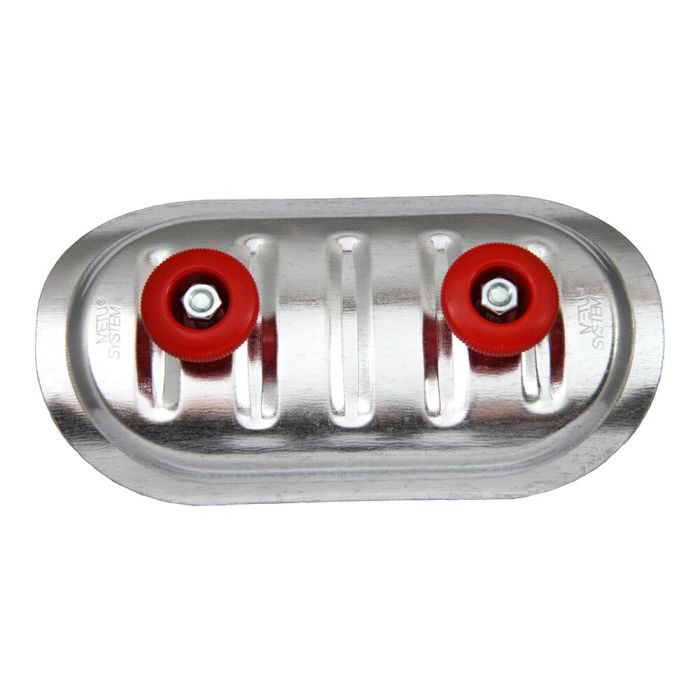

The MEZ-ACCESS DOOR RRD 21-20+22 is suitable for circular ducts with a nominal size of 200/224 mm. The gasket of the RRD 21-20+22, which is made of galvanised steel, consists of polyethylene and the two knobs are made of POM. Those two knobs allow a comfortable handling and operation of the MEZ-ACCESS DOOR RRD 21-20+22. The temperature range reaches from -70 to +70°C, the clearance between the upper edge of the knob or lever in closed position should be approx. 40 mm and the maximum pressure is 2.500 Pa.Technical characteristics
Opening size: 200 x 100 mm
For circular ducts
Nominal size: 200/224 mm
Opening size: 200 x 100 mm
For circular ducts
Nominal size: 200/224 mm
| Teilegruppe | 160202 |
|---|---|
| Material | Stahl verzinkt |
| Ausschnitt | 200 x 100 mm |
