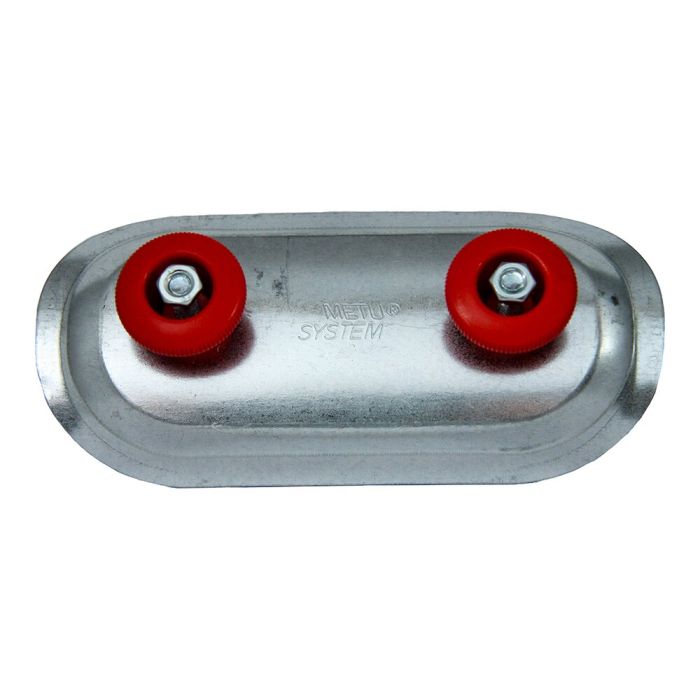

Access door RRD 18-16 - VZ
Circular air ducts, 180 x 80 mm, Dia. 160 mm
Article number
630/160
Access door RRD 18-16 - VZ is available to buy in increments of 1
The MEZ-ACCESS DOOR RRD 18-16 is suitable for circular ducts with a nominal size of 160 mm. The gasket of the RRD 18-16, which is made of galvanised steel, consists of polyethylene and the two knobs are made of POM. Those two knobs allow a comfortable handling and operation of the MEZ-ACCESS DOOR RRD 18-16. The temperature range reaches from -70 to +70°C, the clearance between the upper edge of the knob or lever in closed position should be approx. 36 mm and the maximum pressure is 2.500 Pa.Technical characteristics
Opening size: 180 x 80 mm
For circular ducts
Nominal size: 160 mm
Opening size: 180 x 80 mm
For circular ducts
Nominal size: 160 mm
| Teilegruppe | 160202 |
|---|---|
| Material | Stahl verzinkt |
