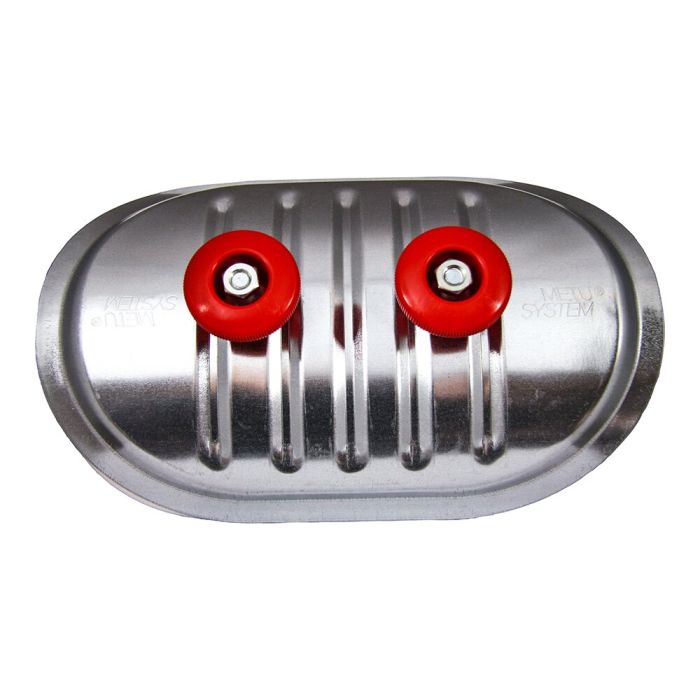

Access door RRD 32-31 - VZ
Circular air ducts, 300 x 200 mm, Dia. 315 mm
Article number
632/315
Access door RRD 32-31 - VZ is available to buy in increments of 1
The MEZ-ACCESS DOOR RRD 32-31 is suitable for circular ducts with a nominal size of 315 mm. The gasket of the RRD 32-31, which is made of galvanised steel, consists of polyethylene and the two knobs are made of POM. Those two knobs allow a comfortable handling and operation of the MEZ-ACCESS DOOR RRD 32-31. The temperature range reaches from -70 to +70°C, the clearance between the upper edge of the knob or lever in closed position should be approx. 55 mm and the maximum pressure is 2.500 Pa.Technical characteristics
Opening size: 300 x 200 mm
For circular ducts
Nominal size: 315 mm
Opening size: 300 x 200 mm
For circular ducts
Nominal size: 315 mm
| Teilegruppe | 160202 |
|---|---|
| Material | Stahl verzinkt |
| Ausschnitt | 300 x 200 mm |
