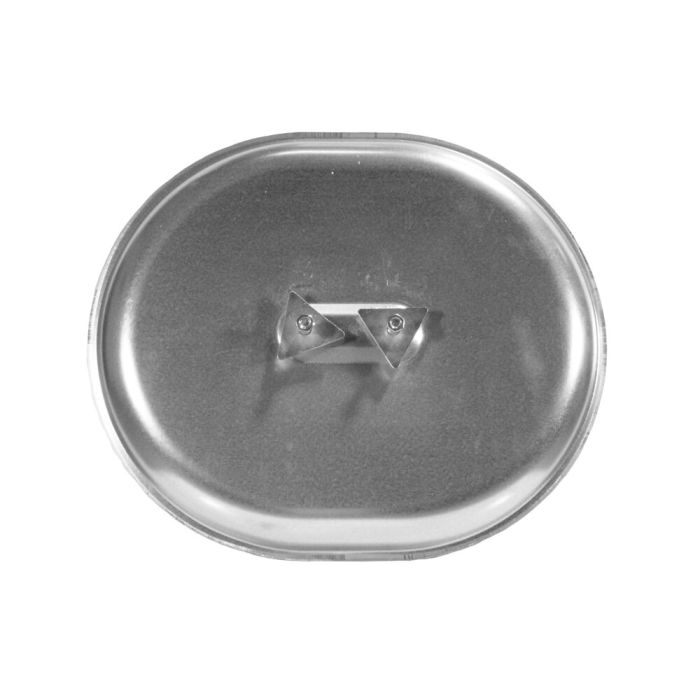

Access door RD 18 - HT V2A
for temperatures up to +300°C
Article number
600HE
Access door RD 18 - HT V2A is available to buy in increments of 1
Opening size 180 x 80 mm
With ceramic fibre seal
For higher temperature requirements
Thanks to its temperature resistance of up to +300°C, the REVISION HRD 18 is ideally suited for higher temperature requirements. The ceramic fibre gasket allows the HRD 18, made of V2A, to withstand higher temperatures. However, it is advisable to replace the ceramic fibre gasket after each opening at temperatures above +200°C, as the adhesive crumbles at temperatures above +200°C. A safe and ambidextrous handling during installation and removal of the REVISION HRD 18 is ensured by the two metal star grips. These are designed for a clamping force of 1.000 to 1.500 Nm. Furthermore, the installation height of the HRD 18 is approx. 37 mm and the cut-out 180 x 80 mm.
With ceramic fibre seal
For higher temperature requirements
Thanks to its temperature resistance of up to +300°C, the REVISION HRD 18 is ideally suited for higher temperature requirements. The ceramic fibre gasket allows the HRD 18, made of V2A, to withstand higher temperatures. However, it is advisable to replace the ceramic fibre gasket after each opening at temperatures above +200°C, as the adhesive crumbles at temperatures above +200°C. A safe and ambidextrous handling during installation and removal of the REVISION HRD 18 is ensured by the two metal star grips. These are designed for a clamping force of 1.000 to 1.500 Nm. Furthermore, the installation height of the HRD 18 is approx. 37 mm and the cut-out 180 x 80 mm.
| Teilegruppe | 160104 |
|---|---|
| Material | Edelstahl V2A |
