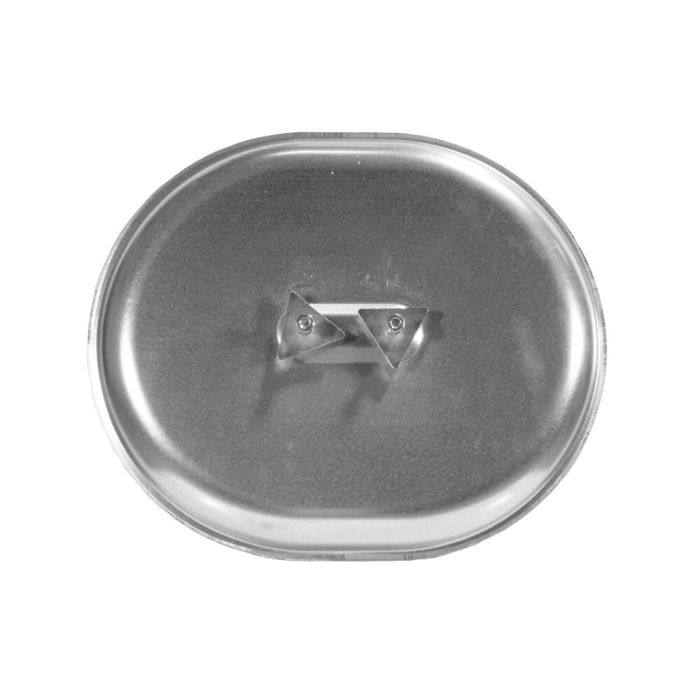

Access door RD 21 - HT V2A
200 x 100, up to +300°C, stainless steel
Article number
601HE
Access door RD 21 - HT V2A is available to buy in increments of 1
Opening size 200 x 100 mm
With vitreous fiber gasket
For high temperatures
The MEZ-ACCESS DOOR RD 21 HT is for high temperatures up to +300°C and has a gasket made of vitreous fiber instead of polyethylene. The two metal knobs allow a comfortable handling and operation of the access door and they have a maximum tensioning force of 1.000 to 1.500 Nm. The MEZ-ACCESS DOOR RD 21 HT is made of stainless steel, the clearance between the duct wall and the upper edge of the knob or lever in closed position should be approx. 35 mm and the opening size is 200 x 100 mm big. At temperatures above +200°C the glue holding the vitreous fibers might be destroyed. Therefore we recommend to replace the gasket after each opening of the access door.
With vitreous fiber gasket
For high temperatures
The MEZ-ACCESS DOOR RD 21 HT is for high temperatures up to +300°C and has a gasket made of vitreous fiber instead of polyethylene. The two metal knobs allow a comfortable handling and operation of the access door and they have a maximum tensioning force of 1.000 to 1.500 Nm. The MEZ-ACCESS DOOR RD 21 HT is made of stainless steel, the clearance between the duct wall and the upper edge of the knob or lever in closed position should be approx. 35 mm and the opening size is 200 x 100 mm big. At temperatures above +200°C the glue holding the vitreous fibers might be destroyed. Therefore we recommend to replace the gasket after each opening of the access door.
| Teilegruppe | 160104 |
|---|---|
| Material | Edelstahl V2A |
