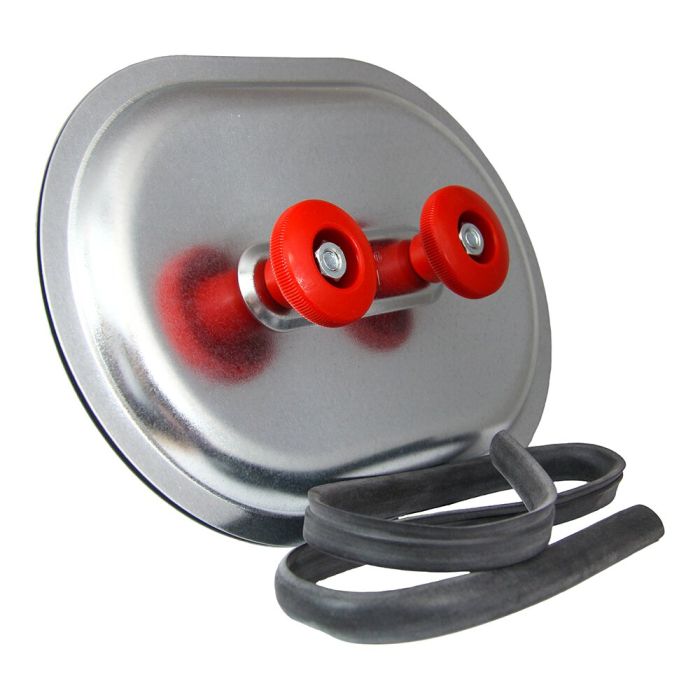

Access door RD 21 - SKK V4A
V4A acccess door
Article number
601KE4
Access door RD 21 - SKK V4A is available to buy in increments of 1
Opening size: 200 x 100 mm
With self-adhesive rubber edge molding
Made of V4A
MEZ-ACCESS DOOR RD 21 SKK has a self-adhesive rubber edge molding which protects you from injuries at the assembly or disassembly and at the same time it serves as a gasket. The MEZ-ACCESS DOOR RD 21 SKK is made of V4A has a temperature resistance from -70 to +80°C and the clearance between the duct wall and the upper edge of the knob or lever in closed position should be approx. 35 mm. The two POM knobs allow a comfortable handling and operation of the MEZ-ACCESS DOOR RD 21 SKK. The gasket consists of polyethylene and the maximum pressure is 2.500 Pa.
With self-adhesive rubber edge molding
Made of V4A
MEZ-ACCESS DOOR RD 21 SKK has a self-adhesive rubber edge molding which protects you from injuries at the assembly or disassembly and at the same time it serves as a gasket. The MEZ-ACCESS DOOR RD 21 SKK is made of V4A has a temperature resistance from -70 to +80°C and the clearance between the duct wall and the upper edge of the knob or lever in closed position should be approx. 35 mm. The two POM knobs allow a comfortable handling and operation of the MEZ-ACCESS DOOR RD 21 SKK. The gasket consists of polyethylene and the maximum pressure is 2.500 Pa.
| Teilegruppe | 160103 |
|---|---|
| Material | Edelstahl V4A |
If you miss a download, please write us via our contact form.
| Product range | Type | Description | Language | File extension | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
