Access door RD 32 - SKK AL

Access door RD 32 - SKK AL | 300x200 mm, aluminium | with edge protection
Article number
602KA
Loading...
Your price:
Access door RD 32 - SKK AL is available to buy in increments of 1

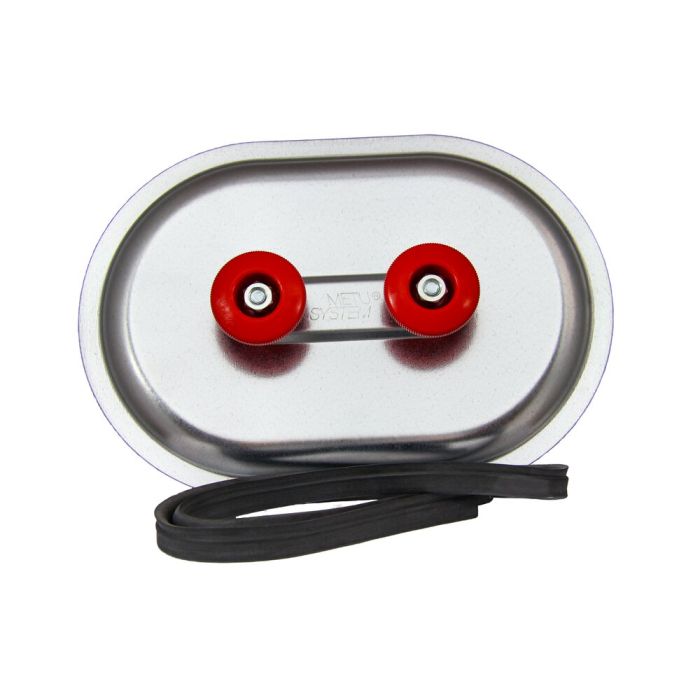

Aluminium access door with safe edge protection



The REVISION RD 32 - SKK - AL combines a 300 × 200 mm aluminium inspection opening with self-adhesive EPDM edge protection. The edge protection covers the cut edge of the duct opening, thereby reducing the risk of injury during installation, inspection and maintenance. At the same time, the edge protection helps seal the inspection opening.

Especially in rectangular, non-insulated air ducts, cleaning and inspection openings must be easily accessible. They must also be reliably resealed after maintenance operations. The REVISION RD SKK meets these requirements with two covers clamped against each other and ergonomic rotary handles. The duct wall is securely clamped between the edges of the covers.



Technical highlights

  • Material: Aluminium, connecting elements made of AISI 304 stainless steel
  • Cut-out: 300 × 200 mm, radius 100 mm
  • Installation height: approx. 50 mm
  • SKK: Self-adhesive EPDM edge protection
  • Max. duct wall thickness: 2 mm
  • SKK operating temperature: up to approx. +80 °C
  • For rectangular, non-insulated air ducts



Top benefits

  • Enhanced occupational safety: The access door with self-adhesive edge protection covers sharp cut edges around the inspection opening.
  • Maintenance-friendly: Ergonomic rotary handles allow the access door to be opened and closed repeatedly.
  • Secure closure: The outer and inner covers clamp the duct wall securely between the edges of the covers.



Further benefits at a glance

  • Purchasing: The clearly defined 300 × 200 mm size makes product selection straightforward for air duct construction.
  • Service: Quick access for inspection, cleaning and maintenance.
  • Maintenance: Corrosion-resistant rotary handles support reliable operation over the long term.
  • Occupational safety: The access door with edge protection covers the exposed cut edge.



Installation

  • Create a 300 × 200 mm cut-out according to the template dimensions.
  • Apply the self-adhesive SKK edge protection neatly to the cut edge.
  • For reliable adhesion, the surface should be dry and free from dust, oil and release agents.
  • Insert the covers and tighten evenly using both rotary handles.



Why is this access door the right choice for you?

The aluminium REVISION RD 32 - SKK access door combines maintenance access, edge protection and straightforward operation. Its design is tailored to professional air duct construction. This makes it particularly suitable for applications where service openings are used regularly and exposed cut edges need to be avoided.



Application scenarios

  • Inspection openings in rectangular air ducts
  • Cleaning and maintenance access
  • Service openings in air duct construction
  • Retrofitting easily accessible inspection openings



AAll information is provided without guarantee. Technical data, illustrations and prices are subject to change and are non-binding. Errors excepted.

Features
Part group160103
MaterialAluminium
