Access door RD 43 - SKK AL

with edge protection, 400 x 300 mm
Article number
604KA
Loading...
Your price:
Access door RD 43 - SKK AL is available to buy in increments of 1

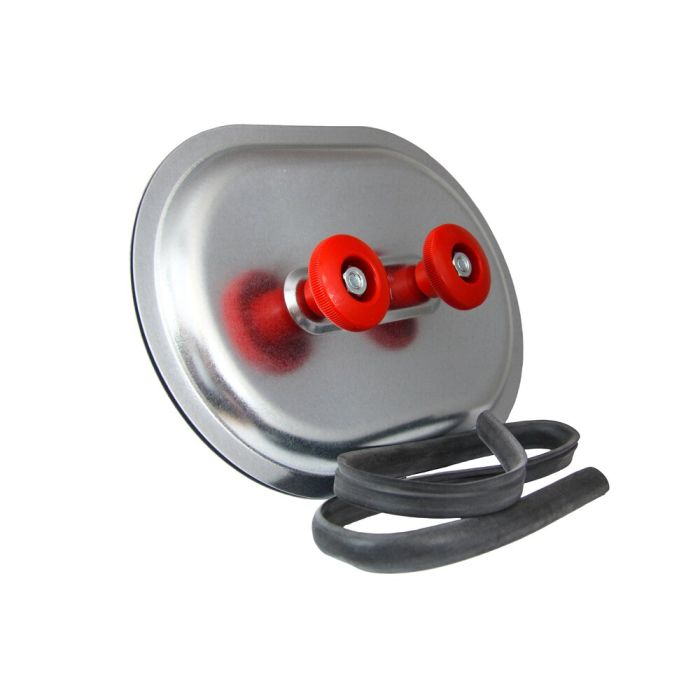

Aluminium access door with secure edge protection

The REVISION RD 43 - SKK - AL combines a 400 × 300 mm aluminium inspection opening with a self-adhesive EPDM edge protector. This protects the cut edge of the duct opening, thereby reducing the risk of injury during installation, inspection and maintenance. At the same time, the edge protection helps with sealing of the inspection opening.

Particularly in the case of rectangular, uninsulated air ducts, cleaning and inspection openings must be easily accessible. They must also be able to be reliably resealed after maintenance operations. The RD SKK access panel fulfils this requirement with two lids braced against each other and ergonomic twist handles. The duct wall is clamped between the edges of the lids.



Technical highlights

  • Material: Aluminium, fasteners made of AISI 304 stainless steel
  • Cut-out: 400 × 300 mm, radius 150 mm
  • Installation height: approx. 56 mm
  • SKK: self-adhesive edge protection made of EPDM
  • Max. duct wall thickness: 2 mm
  • Operating temperature of SKK: up to approx. +80 °C
  • For rectangular, uninsulated air ducts



Key features

  • Improved health and safety: The access door with self-adhesive edge protection covers the sharp edges of the access opening.
  • Easy to maintain: Ergonomic twist handles allow the access panel to be opened and closed repeatedly.
  • Securely sealed: The outer and inner covers clamp the duct wall between the edges of the covers.



Additional features at a glance

  • Clear dimensions of 400 × 300 mm facilitate unambiguous identification in air duct construction.
  • Quick access for inspection, cleaning and maintenance.
  • Corrosion-resistant twist handles ensure long-term usability.
  • The access door with edge protection rounds off the exposed cut edge.



Installation

  • Cut out a 400 × 300 mm section in accordance with the template dimensions.
  • Apply the self-adhesive SKK edge protection neatly to the cut edge.
  • To ensure a reliable bond, the surface should be dry and free from dust, oil and release agents.
  • Insert the cover and tighten evenly using both turning handles.



Why is this access door suitable for you?

The Aluminium RD 43 – SKK access door combines maintenance access, edge protection and straightforward operation. Its design is tailored to professional air duct construction. This makes it particularly suitable for applications where service access points are used regularly and where exposed cut edges need to be avoided.



Application scenarios

  • Inspection openings in rectangular air ducts
  • Cleaning and maintenance access points
  • Service openings in air duct construction
  • Retrofitting of easily accessible inspection openings



All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are not binding. Errors excepted.

Features
Part group160103
MaterialAluminium
