Access door RRD 18-9 - SKK
Access door RRD 18-9 - SKK | 180x80 mm, galvanized steel | Ø 90 mm, with edge protection
Article number
630/090K
Access door RRD 18-9 - SKK is available to buy in increments of 1
With self-adhesive edge protection
Edge protection serves as protection against injuries and for sealing
Heat resistant from -70°C to +80°C

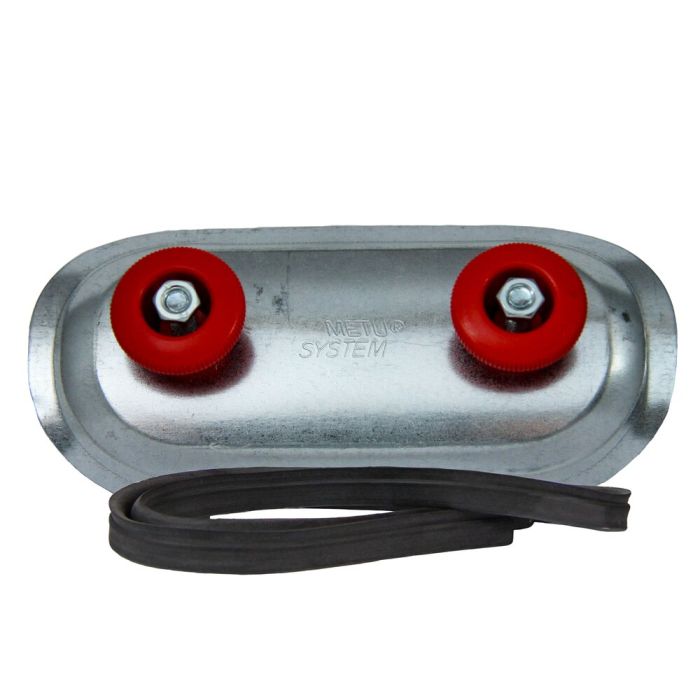

Revision RRD 18 SKK is an inspection cover for circular air duct systems and has a self-adhesive edge protection which serves both as protection against injury and to seal the inspection opening. The inspection cover RRD 18 SKK is made of galvanised steel and has a polyethylene seal. The two rotary handles, which allow two-handed and safe handling, are made of POM-C and have a maximum clamping force of 1,000 to 1,500 Nm.
The inspection opening RRD 18 SKK is designed for a temperature range of -70°C to +80°C, the cut-out of the RRD 18 SKK is 180 x 80 mm and the standard pipe diameter is NW 90. The installation height is approx. 36 mm and the maximum pressure of the RRD 18 is ± 2,500 Pa.
Edge protection serves as protection against injuries and for sealing
Heat resistant from -70°C to +80°C
Revision RRD 18 SKK is an inspection cover for circular air duct systems and has a self-adhesive edge protection which serves both as protection against injury and to seal the inspection opening. The inspection cover RRD 18 SKK is made of galvanised steel and has a polyethylene seal. The two rotary handles, which allow two-handed and safe handling, are made of POM-C and have a maximum clamping force of 1,000 to 1,500 Nm.
The inspection opening RRD 18 SKK is designed for a temperature range of -70°C to +80°C, the cut-out of the RRD 18 SKK is 180 x 80 mm and the standard pipe diameter is NW 90. The installation height is approx. 36 mm and the maximum pressure of the RRD 18 is ± 2,500 Pa.
| Teilegruppe | 160203 |
|---|---|
| Material | Stahl verzinkt |
