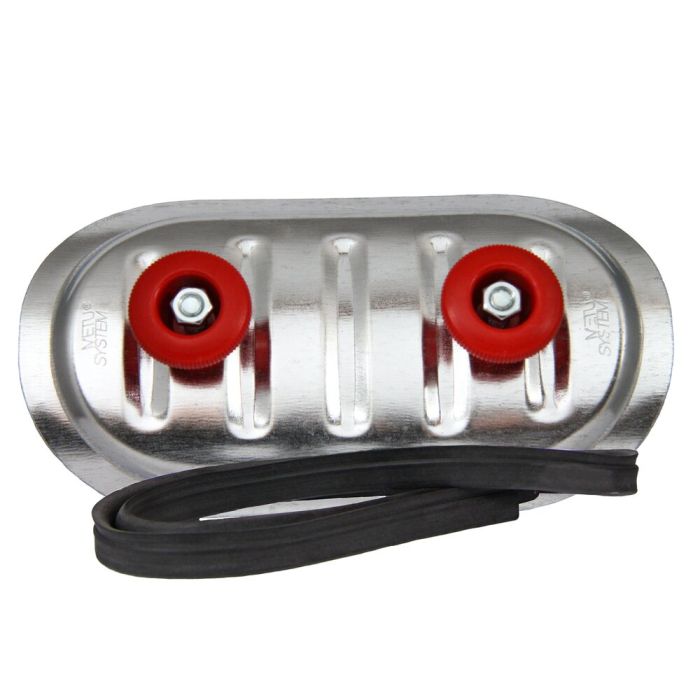

Access door RRD 21-16+18 -SKK
With edge protection, 200 x 100 mm, Dia. 160/180
Article number
631/160K
Access door RRD 21-16+18 -SKK is available to buy in increments of 1
opening size: 200 x 100 mm
with self-adhesive rubber edge molding
nominal size: 160/180 mm
The MEZ-ACCESS DOOR RRD 21-16+18 SKK is suitable for circular ducts with a nominal size of 160/180 mm and is equipped with a self-adhesive rubber edge molding which protects you from injuries during the assembly or disassembly of the access door. The gasket of the RRD 21-16+18 SKK, which is made of galvanised steel, consists of polyethylene and the two knobs are made of POM. Those two knobs allow a comfortable handling and operation of the MEZ-ACCESS DOOR RRD 21-16+18 SKK. The heat stability is up to +80°C, the clearance between the upper edge of the knob or lever in closed position should be approx. 40 mm and the maximum pressure is 2.500 Pa.
with self-adhesive rubber edge molding
nominal size: 160/180 mm
The MEZ-ACCESS DOOR RRD 21-16+18 SKK is suitable for circular ducts with a nominal size of 160/180 mm and is equipped with a self-adhesive rubber edge molding which protects you from injuries during the assembly or disassembly of the access door. The gasket of the RRD 21-16+18 SKK, which is made of galvanised steel, consists of polyethylene and the two knobs are made of POM. Those two knobs allow a comfortable handling and operation of the MEZ-ACCESS DOOR RRD 21-16+18 SKK. The heat stability is up to +80°C, the clearance between the upper edge of the knob or lever in closed position should be approx. 40 mm and the maximum pressure is 2.500 Pa.
| Teilegruppe | 160203 |
|---|---|
| Material | Stahl verzinkt |
