MEZ-2-PART-CORNER System 30

Precision-fit corner joint for moulded profiles in System 30

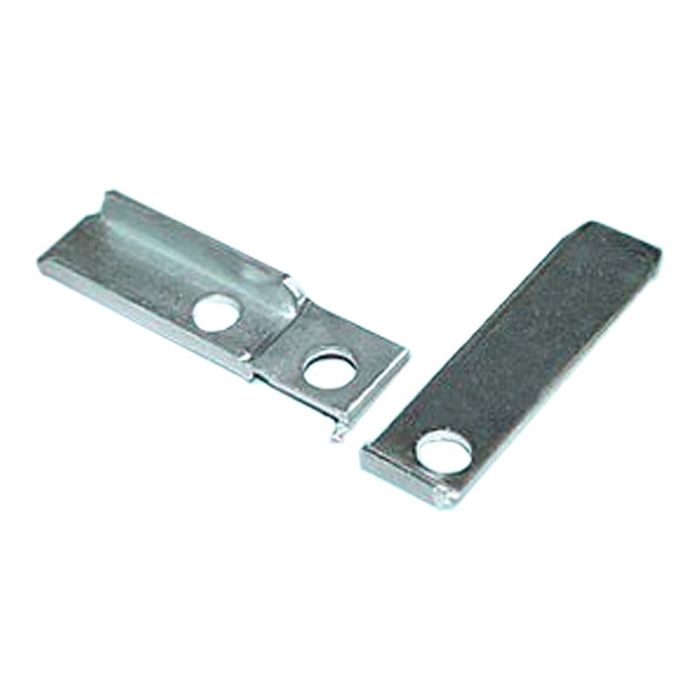

The MEZ-CORNER System 30 203/01 flat section has been specially developed for moulded profiles in System 30. It ensures stable and precision-fit corner joints in air duct construction. You benefit from easy integration into existing manufacturing processes. The precision-fit design facilitates quick assembly and reduces the need for rework.

The flat component is suitable for FIRMAC duct assembly lines as well as applications with moulded flanges. When combined with the matching moulded component, it creates a precise Z-corner for a reliable connection within the profile system. The galvanized steel construction offers reliable corrosion protection and ensures a long service life in daily use.

Technical highlights

• Flat section for moulded profiles, System 30
• Suitable for FIRMAC duct assembly lines and moulded flanges
• Component of a Z-corner
• A flat section and a moulded section are required for the Z-corner
• Galv. finish
• Precisely tailored for applications in air duct construction

Key features

• Precise corner design for moulded profiles
• System-compatible integration into System 30
• Corrosion-protected surface
• Easy to work with during production
• Robust design for professional use

Additional features

• Supports stable corner joints
• Suitable for industrial manufacturing processes
• High fitting accuracy during assembly
• Reduces rework thanks to a system-compatible design

Assembly

• For use in combination with the matching moulded part
• Installation in moulded profiles of System 30
• Easy integration into existing production processes
• Suitable for the manufacture of Z-corners

Why is this MEZ-CORNER flat section System 30 right for you?

The MEZ-CORNER System 30 flat component 203/01 is the right choice when moulded profiles in System 30 need to be joined precisely and reliably. The precise fit supports efficient manufacturing processes and ensures stable corner joints. At the same time, it reduces assembly effort and ensures consistently high quality in air duct construction.

Application scenarios

• FIRMAC duct assembly lines
• Air duct construction with moulded flanges
• Production of Z-corners
• Ventilation and air-conditioning system construction
• Industrial and plant engineering

All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are not binding. Errors excepted.
