MEZ-2-PART-CORNER System 30

Precision corner joint for moulded profiles in System 30

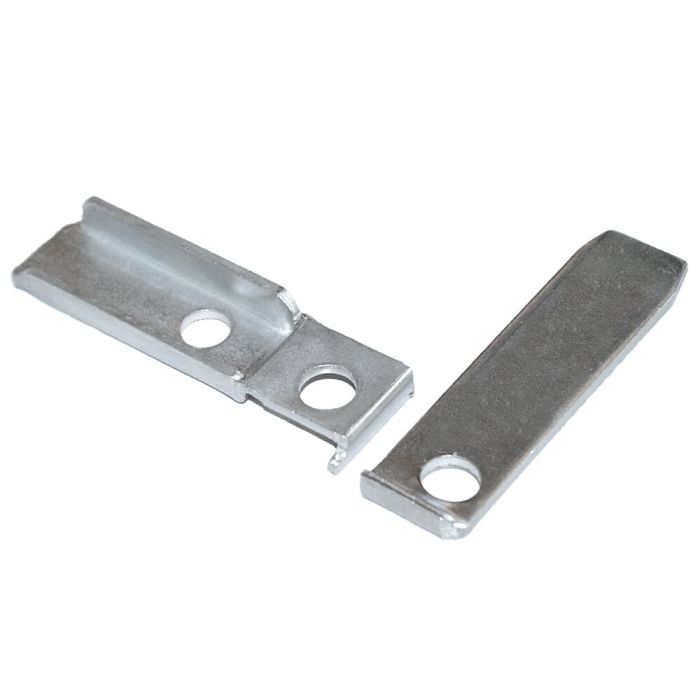

The MEZ-CORNER 203/02 is a moulded component for moulded profiles in System 30 and is suitable, for example, for FIRMAC duct runs and moulded flanges in air duct construction. It has been developed to create precise and stable corner joints and ensures a perfectly fitting frame construction.

Two components are required to create a Z-corner: a flat section and a moulded section. When used in combination, these two components ensure a reliable corner formation and a secure connection within the profile system. The galv. finish protects against corrosion and is designed for long-term use in air duct manufacturing as well as in ventilation and plant engineering.

Technical highlights

• Moulded part for moulded profiles, System 30
• Suitable for FIRMAC duct production lines and moulding flanges
• Component of a Z-corner
• A flat part and a moulded part are required for the Z-corner
• Galv. finish
• Precisely fitting system component for air duct construction

Key features

• Precise corner formation for moulded profiles
• System-compatible integration into System 30
• Corrosion-protected surface
• Easy to process during manufacture
• Robust design for professional use

Additional features

• Supports stable corner joints
• Suitable for industrial manufacturing processes
• High fitting accuracy during assembly
• Reduces rework thanks to system-compatible design

Assembly

• For use in combination with the matching flat section
• Installation in moulded profiles of System 30
• Easy integration into existing production processes
• Suitable for the manufacture of Z-corners

Why is this MEZ-CORNER moulded part for System 30 right for you?

The MEZ-CORNER 203/02 is the right choice when moulded profiles in System 30 need to be joined precisely and reliably. Thanks to its precise fit, the moulded part supports efficient production and ensures stable corner joints in air ducts, duct runs and frame structures.

Application scenarios

• FIRMAC duct runs
• Air duct construction with moulded flange
• Production of Z-corners
• Ventilation and air-conditioning system construction
• Industrial and plant engineering

All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are not binding. Errors excepted.
