MEZ-CORNER 40 - 120

Precise corner angles for stable and airtight air ducts

In practice, air duct manufacturers and fitters often face the same problem: corner joints must offer high stability, precise alignment and long-lasting airtightness – even under load and with large air duct dimensions. Imprecise angles or material weaknesses quickly lead to leaks, rework or installation delays.

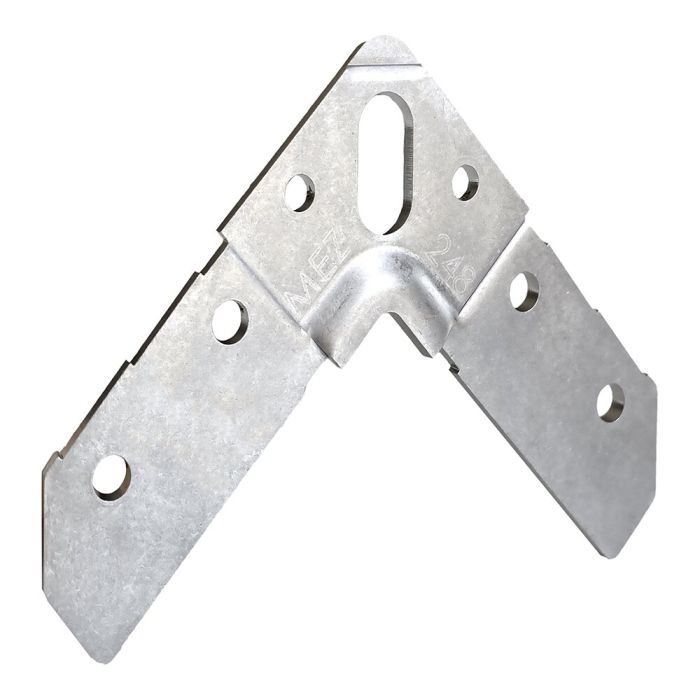

The MEZ‑CORNER 40 – slotted, long – AISI 304 solves precisely these challenges. As a galv. corner bracket for the MEZ‑SYPHON‑FLANGE system 40, it is inserted through the duct wall and, thanks to its 4.0 mm material thickness, 30 mm offset and 26×13 mm slotted hole, ensures a particularly secure, force-fit connection. Its robust design guarantees precise positioning within the frame and increases the rigidity of the entire air duct – ideal for airtight, durable and standard-compliant installations in ventilation and building services environments.

Technical highlights

• Material: Galv. steel (VZ)
• Design: Slotted hole 26×13 mm
• Material thickness: 4.0 mm
• Offset: 30 mm
• System compatibility: MEZ-SYPHON-FLANGE 40

Key features

• High stability thanks to 4.0 mm galvanized steel
• Precise slotted hole for quick alignment
• Perfect fit with the MEZ-SYPHON-FLANGE 40 system
• Durable, corrosion-resistant, low-maintenance
• Ideal for professional mass production

Additional features

• Long service life thanks to robust, galv. steel, resulting in fewer complaints and lower overall costs
• System-compatible with standard MEZ air duct profiles, which ensures planning reliability and simplifies stock management
• Optimised manufacturing tolerances, thereby ensuring reliable quality for mass production
• Permanently sealed frame corners, resulting in fewer leakage points and reduced maintenance requirements
• Corrosion-resistant galvanisation, ensuring a long service life even in demanding environments
• Clean frame geometry facilitates subsequent inspections and maintenance

Installation

• Precise guidance thanks to slotted hole geometry for faster alignment and reduced installation time
• High rigidity in the corner area, contributing to stable frames even with large duct sizes
• Through-hole assembly for clean installation without the need for complex auxiliary structures

Why is this corner right for you?

The MEZ‑CORNER 40 – slotted, long – AISI 304 is the ideal choice for anyone requiring maximum stability, easy assembly and reliable airtightness in air duct frames. Ideal for manufacturers, fitters, wholesalers and service personnel in the building services sector who rely on tested quality and long-term operational reliability.

Application scenarios

• Production of air ducts in the System 40
• Frame construction for rectangular air ducts
• Use in industrial ventilation systems and larger building complexes
• Projects with high requirements for stability and airtightness

All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are not binding. Errors excepted.
