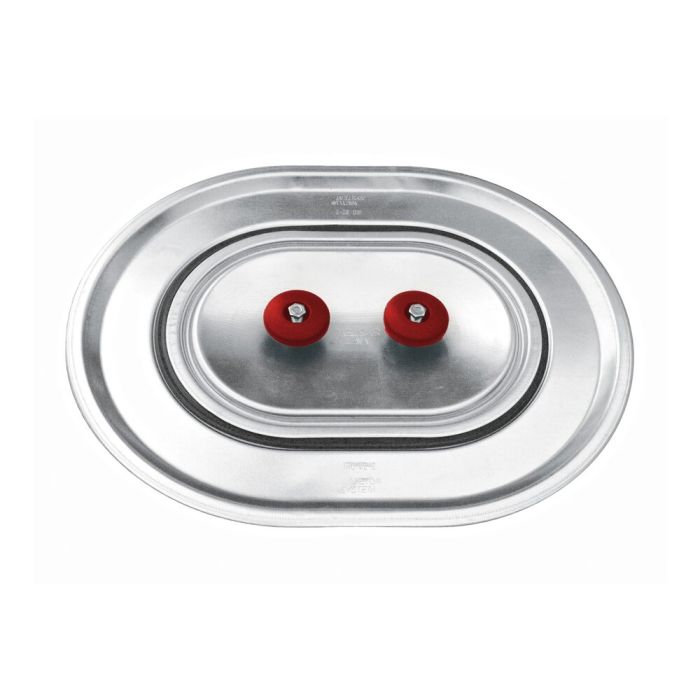

REVISION IRD 21-2
Revision cover suitable for all common insulation materials.
Prevents thermal bridges.
Heat-resistant from −70°C to +80°C.
The IRD inspection cover is designed for insulated rectangular air ducts to cover the insulation material with a stable edge profile. The IRD inspection cover is made of galvanized steel, with a cut-out size of 200 × 100 mm, and it features a gasket made of ethylene–propylene–diene rubber. The permissible temperature range is between −70°C and +80°C, and the allowable insulation thickness for the IRD cover is 20–30 mm.
The duct wall thickness of the insulated duct may be a maximum of 2.0 mm, and the maximum permissible pressure is ±2,500 Pa.
Technical Information
- Application: Insulated rectangular air ducts
- Material: Galvanized steel
- Cut-out: 200 × 100 mm
- Insulation thickness: 20–30 mm
- Temperature range: -70°C to +80°C
- Maximum pressure: ±2,500 Pa
- Gasket material: Ethylene–propylene–diene rubber
- Gasket color: Black
- Turn handle material: Polyoxymethylene copolymer
- Turn handle: M8, M10, or M12
| Teilegruppe | 160105 |
|---|---|
| Material | Stahl verzinkt |
| Ausschnitt | 200 x 100 mm |
