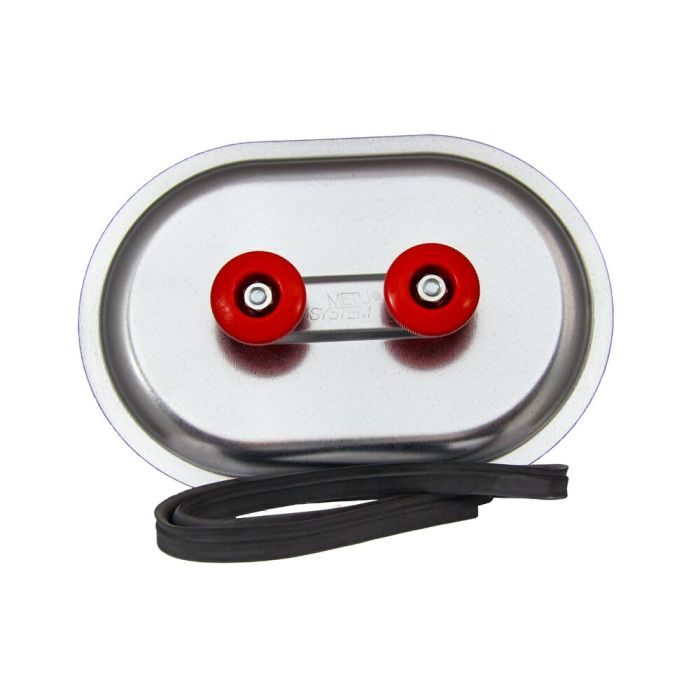

Access door RD 53 - SKK V2A
Access door RD 53 - SKK V2A | 500x300 mm, AISI 304 | with edge protection
Article number
605KE
Access door RD 53 - SKK V2A is available to buy in increments of 1
With self-adhesive edge protection
Edge protection serves as protection against injuries and for sealing
Heat resistant from -70°C to +80°C
Access door RD 53 SKK is an inspection door for rectangular air duct systems and has a self-adhesive edge protection, which serves both as protection against injury and to seal the inspection opening. The inspection cover RD 53 SKK is made of stainless steel and has a polyethylene seal. The two rotary handles, which allow two-handed and safe handling, are made of POM-C and have a maximum clamping force of 1,000 to 1,500 Nm.
The inspection opening RD 53 SKK is designed for a temperature range of -70°C to +80°C and the cut-out of the RD 53 SKK is 500 x 300 mm, the installation height is approx. 56 mm and the maximum pressure of the RD 53 is 2,500 Pa.
Edge protection serves as protection against injuries and for sealing
Heat resistant from -70°C to +80°C
Access door RD 53 SKK is an inspection door for rectangular air duct systems and has a self-adhesive edge protection, which serves both as protection against injury and to seal the inspection opening. The inspection cover RD 53 SKK is made of stainless steel and has a polyethylene seal. The two rotary handles, which allow two-handed and safe handling, are made of POM-C and have a maximum clamping force of 1,000 to 1,500 Nm.
The inspection opening RD 53 SKK is designed for a temperature range of -70°C to +80°C and the cut-out of the RD 53 SKK is 500 x 300 mm, the installation height is approx. 56 mm and the maximum pressure of the RD 53 is 2,500 Pa.
| Teilegruppe | 160103 |
|---|---|
| Material | Edelstahl V2A |
